FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser

China FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser supplier
FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser supplier FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser supplier FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser supplier FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser supplier

Large Image :  FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: White Laser Power: 12/15W(optional)
Type: UV Working Size: 460*460 Mm
Size: 1480mm*1360mm *1412 Mm Precision: ±20 μm
Laser Brand: USA Or Germany Laser Wavelength: 355nm
Laser Scanning Speed: 2500mm/s (max) Description: FPC Laser Depaneling Machine

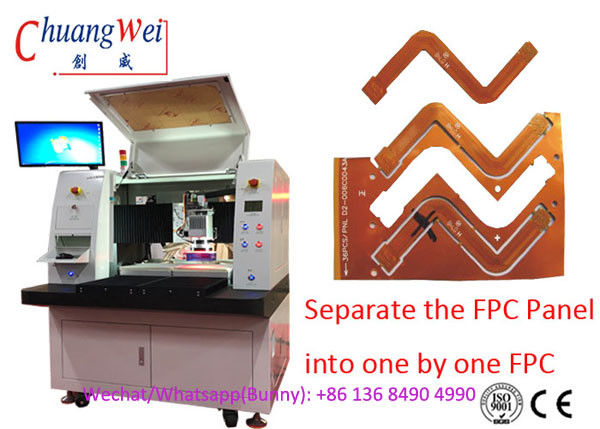

FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser


FPC Laser Depaneling Machine Advantages


High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;


Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;


Reduce energy consumption, Cost savings;

Cost-effective, fast cutting speed, stable performance.



FPC Laser Depaneling Machine Application



FPC and some relative materials;
  FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser

FPC Laser Depaneling Machine Parameter


Parameter









Technical parameters

Main body of laser1480mm*1360mm*1412 mm
Weight of machine1500Kg
PowerAC220 V
Laser355 nm
Laser



Optowave 10W(US)

Material≤1.2 mm
Precision±20 μm
Positioning±2 μm
Platform±2 μm
Working area460*460 mm(could be customized made)
Maximum3 KW
VibratingCTI(US)
PowerAC220 V
Diameter20±5 μm
Ambient20±2 ℃
Ambient<60 %
The MachineMarble


FPC Laser Depaneling Machine Features

1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

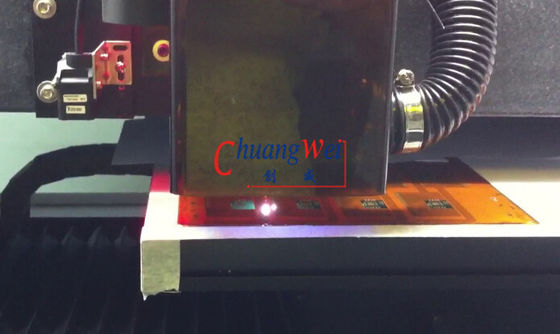

FPC Laser Depaneling Machine Detailed Photo

FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser


FPC Laser Depaneling Machine Workshop



FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser
