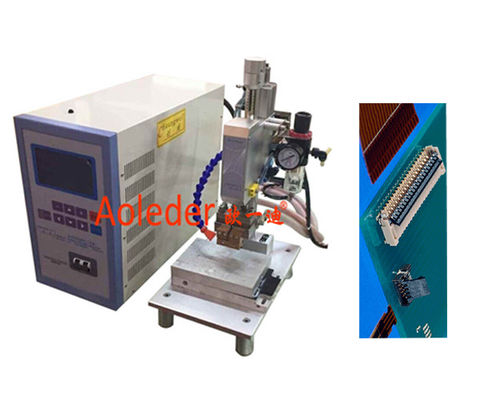

Thermode Head Soldering Hot Bar Soldering Machine With Visible LCD Display

China Thermode Head Soldering Hot Bar Soldering Machine With Visible LCD Display supplier

Large Image :  Thermode Head Soldering Hot Bar Soldering Machine With Visible LCD Display

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE and certificate of registion
Model Number: CWHP-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T L/C paypal west union credit card
Supply Ability: 300 sets/ month
Contact Now
Detailed Product Description
Work Air Pressure:: 0.5-0.7MPA Warranty: Free For One Year
Working Area:: 110mm X 150mm Tolerance Of Pressing:: 0.05MPA
Tolerance Of Temp.:: +2℃ Time Of Pressing:: 0-99s

Thermode Head Soldering Machine Hot Bar Bonding Machine With One Day Lead Time
1. LCD display programmable pressure switch for precise force control.
2. Closed Loop PID temperature control with visible LCD display.
3. Each heating cycle is triggered by a real time pressure sensor.
4.  Floating thermode ensures consistent pressure and heat transfer between thermode head and the parts to be joined.
5.  Silicon rubber can be fitted in bonding Heat Seal Connectors between LCD and PCB.
6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation.
7.  Parts registration is adjusted by micrometer and secured by vacuum lock. Optional CCD system for fine pitch component.




Model: CWHP-1A
Size: 500mm X 750mm X 910mm
Work Air Pressure: 0.5-0.7MPA
Working Area: 110mm X 150mm
Temperature setup: 0-400℃
Tolerance of Temp.: +2℃
Time of pressing: 0-99s
Tolerance of Pressing: 0.05MPA


Production flow


Thermode Head Soldering Hot Bar Soldering Machine With Visible LCD Display



Our best service


1. Engineers available to service machinery oversea.


Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


3..Effective customer service.


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers


4. Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend


Brief introduction


Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.

Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China

Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.


Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.



CE approval


Thermode Head Soldering Hot Bar Soldering Machine With Visible LCD Display
