PCB Depanel Separating MCPCB Aluminium Long LED Strip Panel

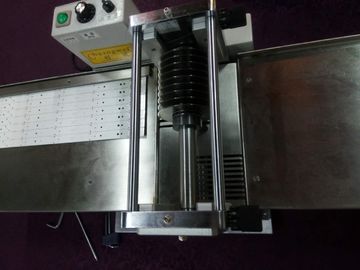

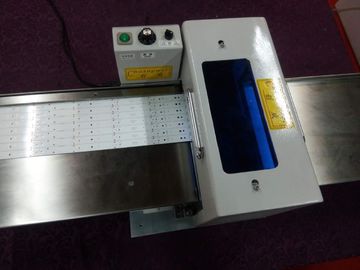

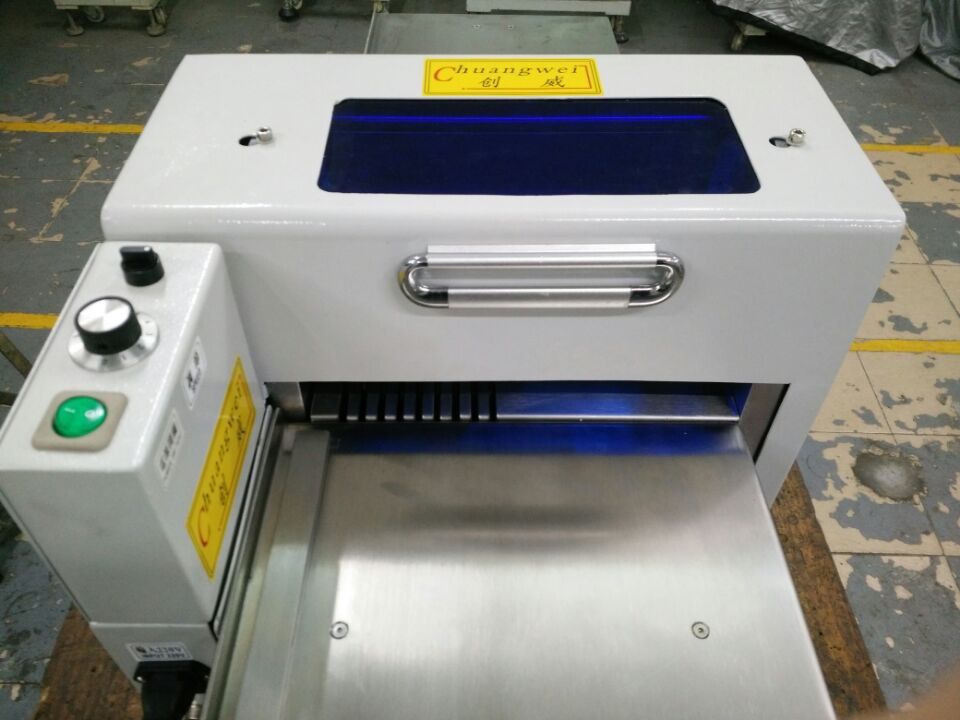

Detailed pictures for CWVC-1SN :
PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Specification :
Machine Model: CWVC-1SN
Max .Cutting length: unlimited
Blades material: High speed steel
Cutting speed: 400 mm /s
Voltage: 220 /110 V
Cutting thickness: 1.0-3.5 mm
Machine size: 2180 * 620 * 960 mm
PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Features:
1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
2. It can cut 8 pcs boards with multiple sets of knives work at the same time.
3. The knife flywheel is adjustable and distance between knives is regulable.
4. The blade is made of high speed steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
