LED Pick And Place Automatic Labeler Machine Label Maker Machine

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

LED Pick And Place Automatic Labeler Machine Label Maker Machine

China LED Pick And Place Automatic Labeler Machine Label Maker Machine supplier
LED Pick And Place Automatic Labeler Machine Label Maker Machine supplier LED Pick And Place Automatic Labeler Machine Label Maker Machine supplier

Large Image :  LED Pick And Place Automatic Labeler Machine Label Maker Machine

Product Details:

Place of Origin: Dongguang
Brand Name: chuangwei
Certification: CE ISO
Model Number: CWTH-4H3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Each set be packed in plywood case
Delivery Time: 1-10 days after payment receipt
Payment Terms: T/T, L/C, D/P
Supply Ability: 300 sers per month
Contact Now
Detailed Product Description
Max Circuit Board Size: 1200×300mm Max Moving Range: X Axis 1210mm, Y Axis 330mm
Typical Mounting Speed: 20000cph Max Mount Speed: 28000cph
Max Moving Range Of Z Axis: 10mm Position Method: Visual Position

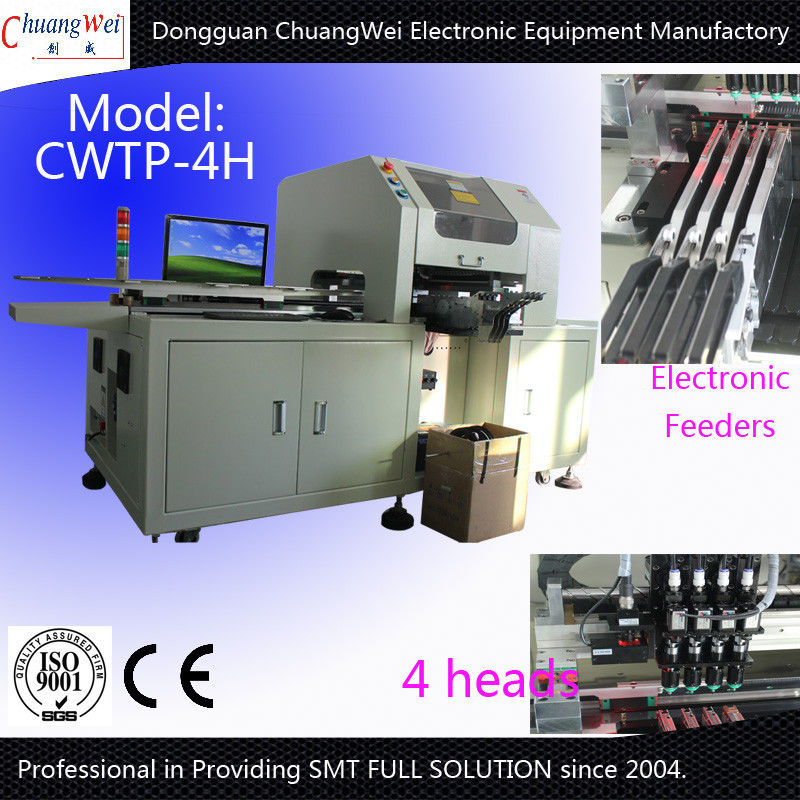

LED Pick And Place Machine For Fully Automatic Led Production Line 4 Head



Feature


1. The platform transmission uses the imported linear guide rail and lead screw in combination with the Japan original Panasonic servo drive ensuring the high-speed stationarity and control precision of the platform.


2. The transmission of the X and Y shafts uses the imported high-precision ground lead screws and linear guide rails in combination with the Japan Panasonic servo drive ensuring the high precision and high speed of mounting.


3.  4 sets of high-speed mounting heads work simultaneously. The sucking heads use high-precision durable spline shafts.


4.  Easy operational program, much more convenient, automatic vision makes position fixin g more accurate and convenient.


5.  Multi Feeder optional, can meet different kinds of LED mounting.


6. Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.


7. Software adopts data system, and store different types of PCB for convenient adjustmen t, just need to programming one time for new products to use forever.


8. Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.


9. LED Pick & Place Machine use imported vacuum detection system, it can check the sucti
on accurately to prevent material leakage and throwing effectively.



10. Internal negative pressure system: low noise, long service life and vacuum pressure cons
tant.


11. Standard setting:1 PC,4 mounting heads,12 nozzles.


12. Optinal :8mm,12mm,16mm 24mm automatic feeder, different nozzles, industrial pump, air compressor.



Technical Parameters



Model CWTP-4H
Max circuit board size 1200×300mm
Max moving range X axis 1210mm, Y axis 330mm
Max moving range of Z axis 10mm
Typical Mounting speed 20000cph
Max mount speed 28000cph
Mount accuracy ±0.05mm
Position method Visual position



Component available



0603and above SMD component and LED

Programme method Automatic data import/ video study/ keyboard input
Belt feeder 8mm, 12mm, 16mm and 24mm(OPT)
suction nozzle JKUI suction nozzle504,505 and 506
Operation system WINDOWS XP
Compressed air Vacuum air in machine
Power supply 220V,50Hz, 1.2Kw
Weight 750Kg
Dimension 2000MM(L)*930MM(W)*1450MM(H)





CE Approval



LED Pick And Place Automatic Labeler Machine Label Maker Machine





Why choose us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


3..Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



4. Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend
