|Label::||Glue Dispenser , Dispensing Robot , Hot Melt Glue||Warranty:||Free One Year|
|Repeatability:||+/- 0.02mm / Axis||Interpolation Function::||3 Axis|
|Power Supply:||AC 90~260V 450W||Working Area::||400/400/100/(mm)|

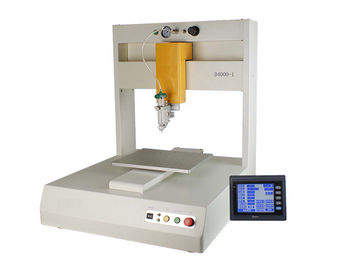

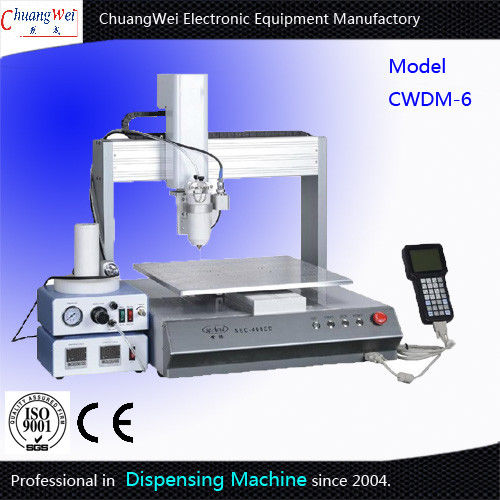

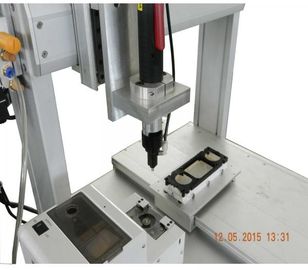

450w Hot Melt Glue Dispenser Robot Automatic Dispensing Machine
Putting 50ml package hot melt adhesive into specific heater, using dispensing controller to extrude glue and 3-axis robot to complete dispensing path.
1. Operation with handheld LCD panel teach box, which is easy to program and learn.
2. Functions of drawing points, lines, surfaces, arc, circle and consecutive complement of irregular curves to realize any 3D non planar trajectory path.
3. Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on.
4. Minisd file storage with high speed and 2g capacity can store 999 dispensing process documents.
5. The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters.
6. With second special dispensing controller, glue outflow is quite stable without leaking and dripping.
7. The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8. Function of glue preheating enable greatly shortening time for replacing glue.
9. Controlling temperature ranging plus-minus 1 degree centigrade by Omron temperature controller.
Hot melt adhesive, such as lotte 3542, fuller 9496, 3m, 2665, itw94167, etc.
Cellphone case, computer case
|Work area (X/Y/Z)mm||200*200*50||300*300*100||400*400*100||500*500*150|
|Operation interface||LCD touch panel/Handhold control box|
|Drive mode||Micro stepping motor/belt|
|Power||AC220V 50-60HZ 0.8KW|
|Operation environment||Humidity:20-90% RH, Temperature:0-40°C|
|Date storage type||CF Card|
1, Keyboard control in Chinese and English version, easy operation and maintenance.
2, Major functions: Drawing point, line, surface ,arc, circle,ellipse,irregular curve continuous complement and triaxial linkage.
3, Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4, According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
5, This machine can set up quickly and easy to operate, can save more time and increase production.
6, The importing function supports AUTO CAD pattern, more accurate and reliable.
7, Handheld LCD teach pendant,easy to program and control.
8, High degree of automation, easy operation which the staff can master severl equipments, Reduce the labor intensity of works ,and leads to increased efficiency and develop a competitive advantage of company
Auto Glue Dispenser/dispensing Machine supplier applicable objects:
Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and so on
The automatic dispenser machine can satisfy various requirements for dispensing, only need to choose different fixtures and math with dispensing systems.
The following installation instruction is based on the 30CC needle cylinder clamp and simple type dispensing system as a model.
1. The standard accessories include the 30CC needle cylinder clamps, and they can be applied to 30CC or 55CC needle cylinder. If you want to use other needle cylinder, then you have to purchase other needle cylinder clamps appropriate.
2. Fix the needle cylinder clamps onto the Z axle. Put the hexagon socket flat head screws through the holes of the clamps and then lock on the Z ground side. The clamp has a couple of holes to select, according to the specific requirements .
3. Connect the signal port(three holes) of the dispenser machine on the backside to the signal port in the controller with dispenser signal line. The signal port in the dispenser machine is the same one that connecting with the foot-plate. Thus a problem may appear that the port can not be shared, if your dispenser machine is not purchased along with the matching machine. In such case, please contact the Extruder supplier for joint exchanging.
4. Connect the compressed air source to the dispenser controller, put the needle cylinder collet onto the needle cylinder and tighten it, and put the needle cylinder into the needle cylinder clamps and lock the screws which are used to fix the needle cylinder.( Please don’t over tighten, in case of deformation. And once it deforms, the piston then cannot fit with the inner side of the needle cylinder, and cause air leakage.)
5. Connect the handheld programmer to the machine.
6. Connect the dispenser machine and the controller to 220V power source.
7. Do make sure the pressure pipe of the needle cylinder collet and the power source will not influence the motion of each axles and working plate.
8. Congratulations for completing primary set of the dispenser machine, please learn teaching mode operation according to the following chapters.
