Automated Dispensing Machines Adhesive Robot Dispensing Machine

China Automated Dispensing Machines Adhesive Robot Dispensing Machine supplier
Automated Dispensing Machines Adhesive Robot Dispensing Machine supplier Automated Dispensing Machines Adhesive Robot Dispensing Machine supplier Automated Dispensing Machines Adhesive Robot Dispensing Machine supplier Automated Dispensing Machines Adhesive Robot Dispensing Machine supplier Automated Dispensing Machines Adhesive Robot Dispensing Machine supplier

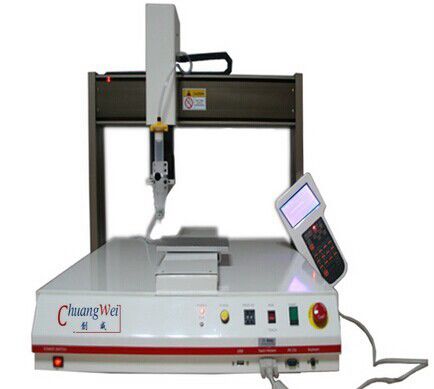

Large Image :  Automated Dispensing Machines Adhesive Robot Dispensing Machine

Product Details:

Place of Origin: China
Brand Name: Chuangwei glue dispensing machine
Certification: CE
Model Number: CWDJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3 work days
Supply Ability: 1200 sets / year
Contact Now
Detailed Product Description
Working Relative Humidity: 20~90% No Condensation Repetitive Positioning Accurracy: +/-0.01mm/Axis
Warranty: Free For One Year Working Area: 300/300/100(mm)
Dimensions(W*D*Hmm: 485*505*610 ( Mm ) Name: Glue Dispensing Machine





Automated Dispensing Machines Adhesive Robot Dispensing Machine





Automated Dispensing Machines Adhesive Robot Dispensing Machine

Our business partners :

Automated Dispensing Machines Adhesive Robot Dispensing MachineAutomated Dispensing Machines Adhesive Robot Dispensing MachineAutomated Dispensing Machines Adhesive Robot Dispensing MachineAutomated Dispensing Machines Adhesive Robot Dispensing Machine







Features for gllue dispensing machine :

1 , Function : Drawing point , line , surface , arc , circle , irregular curve continuous complement and triaxial linkage .
2 , The software has the area display , translation rotating operation functions .
3 , Can set glue size , glue speed , dispensing time , stopping glue time . Stable glue

exudation without glue leaking and dripping .

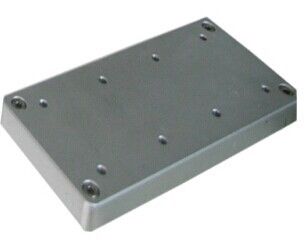

4 , According to the production process , work platform can be installed with positioning PIN ,


Specification for glue dispensing machine :

Model CWDJ-220D CWDJ-330D CWDJ-440D CWDJ-550D
Work area (X/Y/Z)mm 200*200*50 300*300*100 400*400*100 500*500*150
Max. speed(mm/see) 0.1~500/350 0.1~800/500 0.1~800/500 0.1~800/500
Dimensions(W*D*H mm) 385*380*500 485*505*610 585*610*610 685*700*660
Resolution 0.01mm/Axis
Repeatability +/-0.01mm/Axis
Operation interface LCD touch panel/Handhold control box
Drive mode Micro stepping motor/belt
Power AC220V 50-60HZ 0.8KW
Net weight 23kg 34kg 41kg 52kg
Operation environment Humidity:20-90% RH, Temperature:0-40°C
Date storage type CF Card
