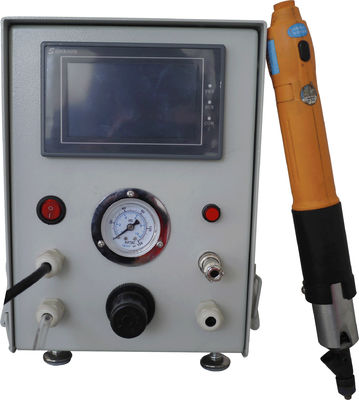

Manual Hanheld Screwdriving Machine For Electronic Assembly Line

Manual Hanheld Screwdriving Machine For Electronic Assembly Line
Manual Hanheld Screwdriving Machine For Electronic Assembly Line Manual Hanheld Screwdriving Machine For Electronic Assembly Line Manual Hanheld Screwdriving Machine For Electronic Assembly Line

Large Image :  Manual Hanheld Screwdriving Machine For Electronic Assembly Line

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWMS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per months
Detailed Product Description
Capacity Of Screw Pocket: M2 X 6 5000PCS Conveying Distance:: 1-4M
Noise:: Below 65db Screw-feeding Speed: 0.5 Sec/ Piece
Power Supply: AC 90~260V 300W Motor System: Micro Stepping Motor
High Light:

scrw driver machine

,

auto dispensing machine





Manual Hanheld Screwdriving Machine For Electronic Assembly Line​


Specifications

Manual Screwdriving Machine with Auto Feeding device
1. With screwfeeder, saving labor
2. High efficiency, high accuracy



Manual  Screwdriving Machine with Auto Feeding device



Application



1) Scope of applicative screws: M1- M6

2) Scope of applicative screw heads: for any universal type

3) Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

4) Screw Materials: iron, copper, stainless steel, etc.

5) Materials of products to be screwed: plastic, iron, aluminum, etc.

6) Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.



Specification



Power

220V, 50HZ

Voltage

30W

Capacity of Screw Pocket

M2 X 6 5000PCS

Screw-feeding Speed

0.5 sec/ piece

Efficiency

50-70 pcs/min

depends on screw length

Conveying Distance

1-4M

Noise

below 65db

Size(L*W*H)

370*250*190 mm

Weight

9kg



Features



Automatic screwdriver machine subvert the working principle of traditional screwdriver machine by abandoning the vibration plate and pusher. It carries forward the advantages and overcomes the disadvantages of traditional screwdriver machine, making it portable, safe, stable and fast with low noise and low energy consumption.

1) The screwdriver is small and will not block workers’ sight.

2) The screwdriver is very light in weight and do not give a sense of heaviness.

3) The noise is below 65db.

4) The screw will not vibrate and fade for not using the vibration plate

5) Total weight is about 9kg, easy to carry.

6) With intelligent alarm function (acousto-optic remind) for component shortage.





Advantages:



1) Convenient. It can save a hand to hold the products and can save a positioning fixture if the product is small.

2) Fast. With air-blowing screwfeeder, it can completely save the time for grasping and moving screws and the time of alignment and waiting.

3) Clean. It can avoid pollution of screws for saving the action of fetching screws by hand.

4) High precision & high efficiency.

5) Save labor.



Theory:



Automatic screwdriver machine consists of two parts: screw- feeding system and screw-locking system. First, the feeding system will order screws and distribute them through allocation, and then send them to the screwdriver via the pipe. Then, the electric or pneumatic screwdriver will lock the screws into the right place of the products. Compare with traditional screwdriver, automatic screwdriver machine just needs one hand to take the screwdriver and align the screw hole, saving the other hand. After locking one screw, another one will be sent to the mouth of the screwdriver the moment it is lifted.
