| Repeat Accuracy: | ±0.01mm/axis | Move Speed(X&Y/Z): | 400/200mm/sec |
|---|---|---|---|
| Max. Load(Y/Z): | 7kg/3kg | Work Area: | 300X*300Y*100Z Mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | MOQ: | 1 Set |
| High Light: | Auto Dispensing Machine,pcb dispenser |
||

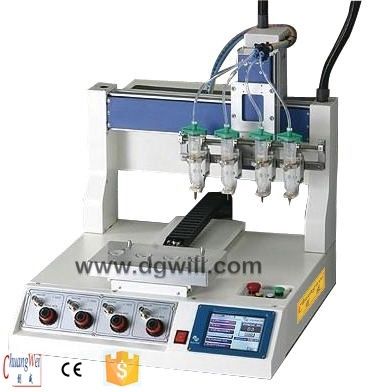

Dispensing Robot for SMT Industry Applications:
Dispensing Robot
1 , LED package
2 , Mobile phone plate coating or dispensing button
3 , Speaker Dispensing
4 , Dispensing sealing the battery case
5 , The semiconductor package
6 , Power component package
7 , chip binding Dispensing Robot
8 , Fixed and protected PCB electronic components
9 , LCD glass board package
Specifications for Dispensing Machine :
| Technique Specifications | |||
| Model | CWDM-2 | CWDS331 | CWDS221 |
| Process range | 400 / 400 / 100 | 300 / 300 / 100 | 200 / 200 / 100 |
| Max Load(Y/Z) | 10 kg/ 5 kg | 6 kg / 2 kg | 4 kg / 2 kg |
| Speed of motion | 0.1~600 / 250mm/s | 0.1~600 / 250mm/s | 0.1~600 / 250mm/s |
| Positional Accuracy | 0.02 mm/Axle | 0.02mm/Axle | 0.02mm/Axle |
| Repeated Accuracy | +/- 0.02mm/ Axle | +/- 0.02 mm/ Axle | +/- 0.02 mm/Axle |
| Storage | Control Card 16MB Extended Storage 2 GB |
Control Card 16MB Extended Storage 2 GB |
Control Card 16MB Extended Storage 2 GB |
| External Communication | SD Card | SD Card | SD Card |
| Displayer | LCD | LCD | LCD |
| Driving method | Step motor + Timing belt | Step motor + Timing belt | Step motor + Timing belt |
| Programmable Graphic | Point, line, circle, arc, continuous line, etc. | Point, line, circle, arc, continuous line, etc. | Point, line, circle, arc, continuous line, etc. |
| Double Y axle | Upgrades Available | Upgrades Available | Upgrades Available |
| Edit mode | Demonstration | Demonstration | Demonstration |
| I/0Signal | 24in / 22out | 24in / 22out | 24in / 22out |
| Power source | 220V(+/-10%/50Hz) | 220V(+/-10%/50Hz) | 220V(+/-10%/50Hz) |
| Visual positioning | None | None | None |
PCB Despensing Installation:
The automatic dispenser machine can satisfy various requirements for dispensing , only need to choose different fixtures and math with dispensing systems .
The following installation instruction is based on the 30CC needle cylinder clamp and simple type dispensing system as a model .
1. The standard accessories include the 30CC needle cylinder clamps , and they can be applied to 30CC or 55CC needle cylinder . If you want to use other needle cylinder , then you have to purchase other needle cylinder clamps appropriate .
2 . Fix the needle cylinder clamps onto the Z axle . Put the hexagon socket flat head screws through the holes of the clamps and then lock on the Z ground side . The clamp has a couple of holes to select , according to the specific requirements .
3 . Connect the signal port ( three holes ) of the dispenser machine on the backside to the signal port in the controller with dispenser signal line . The signal port in the dispenser machine is the same one that connecting with the foot-plate . Thus a problem may appear that the port can not be shared , if your dispenser machine is not purchased along with the matching machine . In such case , please contact the Extruder supplier for joint exchanging .
4 . Connect the compressed air source to the dispenser controller, put the needle cylinder collet onto the needle cylinder and tighten it, and put the needle cylinder into the needle cylinder clamps and lock the screws which are used to fix the needle cylinder . ( Please don’t over tighten, in case of deformation . And once it deforms , the piston then cannot fit with the inner side of the needle cylinder , and cause air leakage . )
5 . Connect the handheld programmer to the machine .
6 . Connect the dispenser machine and the controller to 220V power source .
7 . Do make sure the pressure pipe of the needle cylinder collet and the power source will not influence the motion of each axles and working plate .
8 . Congratulations for completing primary set of the dispenser machine , please learn teaching mode operation according to the following chapters .
Features:
1 . English keyboard operation.
2 . Function : drawing point , line , surface , arc , circle , irregular curve continuous complement and triaxial linkage.
3 .The software has the area display , translation rotating operation functions.
4 .Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5 . According to the production process , work platform can be installed with positioning PIN , glue guns , baseboard heating temperature controlling device.
6 . Applied to fluid dispensing , e.g. : UV glue , AB glue , EPOXY( black glue ) , white glue , EMI conductive glue , silicon , epoxy resin, instant glue , silver glue , red glue , paste , thermal grease , welding control paste , transparent paint , screw fixative
7. Applicable objects : mobile phones , computer case , CD-ROM driver , printer , ink folder , PCB board , LCD , LED , DVD , digital camera , switches , connectors , relays , radiators , semiconductors , clocks , toys and medical appparutus.
Details Technical Parameters:
Advantages:
1 . English LCD panel teach pendant, easy operation and learning .
2 . Three axis movement robot has the function of drawing points , lines , surfaces , arc , circle , irrecular curves consecutive interpolation .
3 . Dispensing volume , dispensing speed , dispensing time , stopping dispensing time can be set .
4 . Autmatic curving protection .
5 . Special dispensing controller makes fluid flow stable without leaking and dripping .
Our Services:
1 .Stable quality , competitive price , one year free parts warranty except for dispensing consumables , such as plastic pipes , needles . Over the warranty , lifelong maintenance is also available with some charges.
2 .One week delivery after down payment for standard type.
Why choose us:
|
1 . Engineers available to service machinery oversea . Engineers are available to be sent to freign countries to do machinery training and offer technical support
|
|
2 . Mature technique & forerunner to process makes high quality machinery . As largest manufactory in South China , we have 12 years experience on PCB separator machines and soldering machines . pcb router Our R&D team continuously upgrade the existing machines to meet the market development trend .
|
|
3 . One year warranty for the machines except accessories . Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients . We offer parts for replacement under warranty free of charge , clients only need to bear freight charge
|
|
4 . Effective customer service . All of us together are stronger and wiser than any one of us individually . To succeed , we must assume responsibility , cooperate with fellow associates and withdepartments , effectively comminicate with one another, foster enthusiam and participate in decision-making . To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
|
|
Our mission : Ongoing PCB industry PCB separator technological innovation , to create greater value , allowing customers to success
|
|
Our Vision : Ongoing PCB industry PCB separator technological innovation , to create greater value , allowing customers to success
|
