Home ProductsSolder Pallet

Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature

China Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature supplier
Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature supplier Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature supplier

Large Image :  Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWSC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Standard OperationTemperature: 260 Colour: Blue/ Black/ Grey
Condition:: New Life Cycle: 20000 Times
Maximum Operation Temperature(C): 350 Sheet Size(mm): 2440×1220

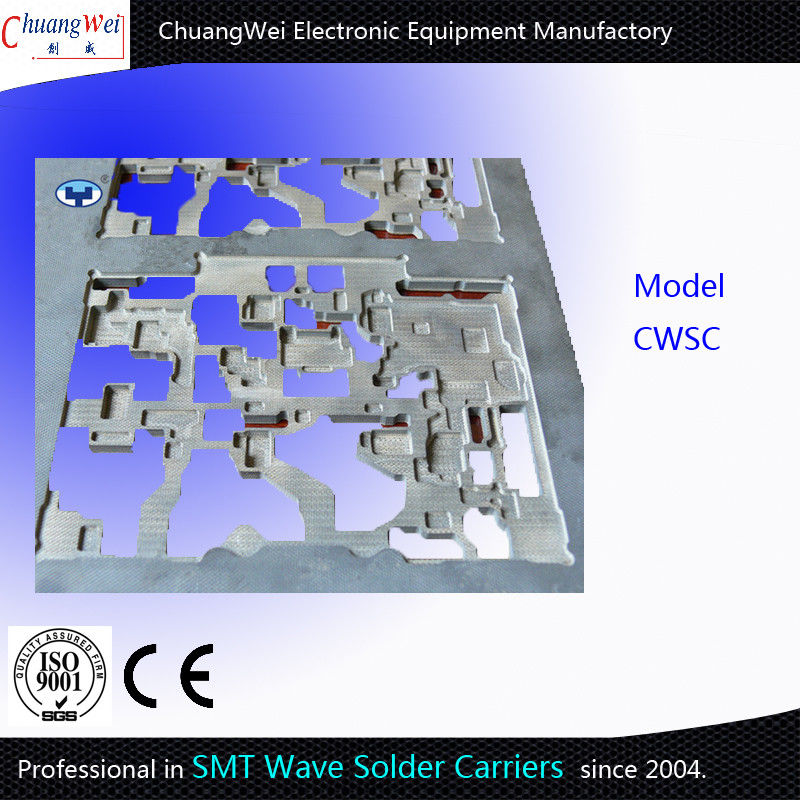

Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature



Chuangwei’s standard PCB hold down is our low profile. It is unbreakable, ESD safe and guaranteed for the life of the pallet. The non-marring design applies 12 pounds of downward pressure without having to lift. Just twist! We also offer a high profile hold down, cam-lock and custom hold downs for connectors.


Chuangwei does not ‘tap’ the composite, we use all “metal to metal” fasteners ensuring a reliable and long lasting fixture.


We offer two sizes of extruded aluminum stiffeners and solder dams; for smaller pallets we have a 3/8” tall and for larger pallets we have a 3/4” tall design.


All pallets are engraved with the board name and our work order number for handy reference. All data associated with your pallet is stored to that work order number.


BOTTOM SIDE STANDARD FEATURES


All bottom side fasteners are made from 316 grade stainless steel. This eliminates solder sticking or wetting to the fastener.


All fasteners are thread locked.



Our goal is to design and build a solution that will give you:


1.  Highest yields with the largest process window possible.
2.  Easy to use tooling that will survive your manufacturing environment.
3.  Fastest delivery times possible.



Process Suitability


The viability of this process route crucially relies upon being able to estimate the number and distribution of PTH components

which CAN'T be processed (with and without glue dotting) - These will have to be miniwaved or hand soldered.
which are likely to be poorly soldered - These will require further inspection and manual touch up.


This estimation may be done in three ways

If a PCB is available (preferably populated) - our sales engineers can rapidly evaluate your board.
If PCB design data is available we will process, analyse and remotely assess it.
You can do it using the rules presented below - our customers quickly find that the above two methods are easiest.






Specification:


Model DurostoneCHP760 DurostoneCAS761 DurostoneCAG762
Grade Standard Anti-Static Anti-static(Optical)
Colour Blue Black Grey
Density(g/mm3) 1.85 1.85 1.85
Standard OperationTemperature 260 260 260
Maximum Operation Temperature(C) 350 350 350
Sheet Size(mm) 2440×1220 2440×1220 2440×1220
Tickness/weight(mm/kg) 3/17, 4/22 5/28, 6/33, 8/44 10/55, 12/66





TOP SIDE STANDARD FEATURES


Chuangwei’s standard PCB hold down is our low profile. It is unbreakable, ESD safe and guaranteed for the life of the pallet. The non-marring design applies 12 pounds of downward pressure without having to lift. Just twist! We also offer a high profile hold down, cam-lock and custom hold downs for connectors.


Chuangwei does not ‘tap’ the composite, we use all “metal to metal” fasteners ensuring a reliable and long lasting fixture.


We offer two sizes of extruded aluminum stiffeners and solder dams; for smaller pallets we have a 3/8” tall and for larger pallets we have a 3/4” tall design.


All pallets are engraved with the board name and our work order number for handy reference. All data associated with your pallet is stored to that work order number.


BOTTOM SIDE STANDARD FEATURES


All bottom side fasteners are made from 316 grade stainless steel. This eliminates solder sticking or wetting to the fastener.


All fasteners are thread locked.



Our goal is to design and build a solution that will give you:


1. Highest yields with the largest process window possible.
2. Easy to use tooling that will survive your manufacturing environment.
3. Fastest delivery times possible.



Process Suitability


The viability of this process route crucially relies upon being able to estimate the number and distribution of PTH components

which CAN'T be processed (with and without glue dotting) - These will have to be miniwaved or hand soldered.
which are likely to be poorly soldered - These will require further inspection and manual touch up.




PTH Components Located Perpendicular to direction through wave.

A larger separation is required due to the solder having to flow "under"
component pockets.





Working your way around the underside of the PCB, identify which components
are parallel and perpendicular to the wave and assess the solderability of each
PTH connector by comparing the actual separation against the graph right.

Ideally you want to be above the line in all cases.



Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature





PCB Design Implications - for Board Designers - or respin



We are often called upon by our customers to help with identifying design respin opportunities.

We will identify problem areas within a board and suggest appropriate movements of components. (Ideally before the PCB is fabricated)

However for board designers reading this, can you remember another four "rules" (to compete with the hundred other rules you have to have floating
around in your head).

Keep large (height) SMT components away from PTH areas.
Leave the leading and trailing areas around PTH components as clear as possible.
DON'T put any SMT components within 3mm (0.12") of any PTH components.
DON'T put all PTH components in line along one edge of a board - leave some space to allow us to support the masking in the centre of the board.



CE approval



Mini Soldering Defects Solder Pallet CE ISO 350 Maximum Temperature



 FAQ



(1) Discount price yes&no ?



 It is depending on the volume. The larger the volume is, the more discount you can

enjoy.



(2) Why your price is a bit higher than other Chinese suppliers?



To meet the requirement of different customers and areas, our factory manufactures

various kinds of quality for each item at a wide range of price. We can offer the

products of different quality levels depending on customer’s target price and quality

requirement.



(3) If I can get a sample ?



For existing samples (sizes not larger than 300*300mm) can be sent free of charge

but you just need to bear shipping charge, or you can provide your DHL, FEDEX,

EMS, UPS courier account number to us.

For bigger sizes, or customized samples, it depends on negotiation.



(4) If you can guarantee the quality of mass production is same

as the sample sent to me before?



Quality is our culture, is our life. We believe our products will give you a surprise.

Our warehouse staff will leave another same sample in our workhouse, and marked

your company name on it, which our production will be based on.



(5) How can you deal with quality issues after receiving the goods?



 1) First you take photos of unqualified goods and then our sales staff will send

them to Manufacturing Department to verify.

 2) If the problem is confirmed, our sales will explain the root cause and take

corrective actions in coming orders.

3) Finally, we will negotiate with you to make some compensation.
