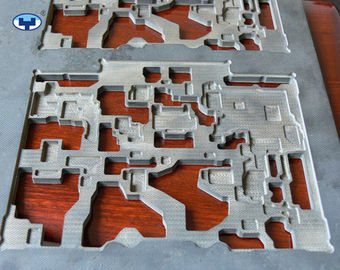

Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet

Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet
Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet

Large Image :  Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet

Product Details:

Place of Origin: Dongguan
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWSP-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Life Cycle: 20000 Times Colour: Blue/ Black/ Grey
Condition:: New Standard OperationTemperature: 260
Maximum Operation Temperature(C): 350 Sheet Size(mm): 2440×1220
High Light:

smt pallet

,

pcb carrier



Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet



Specification:


Model DurostoneCHP760 DurostoneCAS761 DurostoneCAG762
Grade Standard Anti-Static Anti-static(Optical)
Colour Blue Black Grey
Density(g/mm3) 1.85 1.85 1.85
Standard OperationTemperature 260 260 260
Maximum Operation Temperature(C) 350 350 350
Sheet Size(mm) 2440×1220 2440×1220 2440×1220
Tickness/weight(mm/kg) 3/17, 4/22 5/28, 6/33, 8/44 10/55, 12/66




Gerber, Excellon and other data required

Pin Land to SMT pad clearance evaluation

The two figures below each show part of a CSWSC in plan and section views. The right hand figure shows that more clearance
is required when the connector orientation is perpendicular to the wave.



Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet 0

PTH Components Located Parallel to direction through wave

The clearance required between the pin land and SMT pad can be made quite
small, as the solder does not have to flow "under" the component pockets.









Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet 1

PTH Components Located Perpendicular to direction through wave.

A larger separation is required due to the solder having to flow "under"
component pockets.





Working your way around the underside of the PCB, identify which components
are parallel and perpendicular to the wave and assess the solderability of each
PTH connector by comparing the actual separation against the graph right.

Ideally you want to be above the line in all cases.



Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet 2





PCB Design Implications - for Board Designers - or respin



We are often called upon by our customers to help with identifying design respin opportunities.

We will identify problem areas within a board and suggest appropriate movements of components. (Ideally before the PCB is fabricated)

However for board designers reading this, can you remember another four "rules" (to compete with the hundred other rules you have to have floating
around in your head).

Keep large (height) SMT components away from PTH areas.
Leave the leading and trailing areas around PTH components as clear as possible.
DON'T put any SMT components within 3mm (0.12") of any PTH components.
DON'T put all PTH components in line along one edge of a board - leave some space to allow us to support the masking in the centre of the board.





FAQ



(1) Discount price yes&no ?



 It is depending on the volume. The larger the volume is, the more discount you can

enjoy.



(2) Why your price is a bit higher than other Chinese suppliers?



To meet the requirement of different customers and areas, our factory manufactures

various kinds of quality for each item at a wide range of price. We can offer the

products of different quality levels depending on customer’s target price and quality

requirement.



(3) If I can get a sample ?



For existing samples (sizes not larger than 300*300mm) can be sent free of charge

but you just need to bear shipping charge, or you can provide your DHL, FEDEX,

EMS, UPS courier account number to us.

For bigger sizes, or customized samples, it depends on negotiation.



(4) If you can guarantee the quality of mass production is same

as the sample sent to me before?



Quality is our culture, is our life. We believe our products will give you a surprise.

Our warehouse staff will leave another same sample in our workhouse, and marked

your company name on it, which our production will be based on.



(5) How can you deal with quality issues after receiving the goods?



 1) First you take photos of unqualified goods and then our sales staff will send

them to Manufacturing Department to verify.

 2) If the problem is confirmed, our sales will explain the root cause and take

corrective actions in coming orders.

3) Finally, we will negotiate with you to make some compensation.




Production flow



Customize PCB Soldering Pallet,Durable Adjustable SMT Pallet 3
