PLC + TP Automatic Screwdriver Machine Adapted To M1.0 ‐ M4.0 Screw Lock

China PLC + TP Automatic Screwdriver Machine Adapted To M1.0 ‐ M4.0 Screw Lock supplier

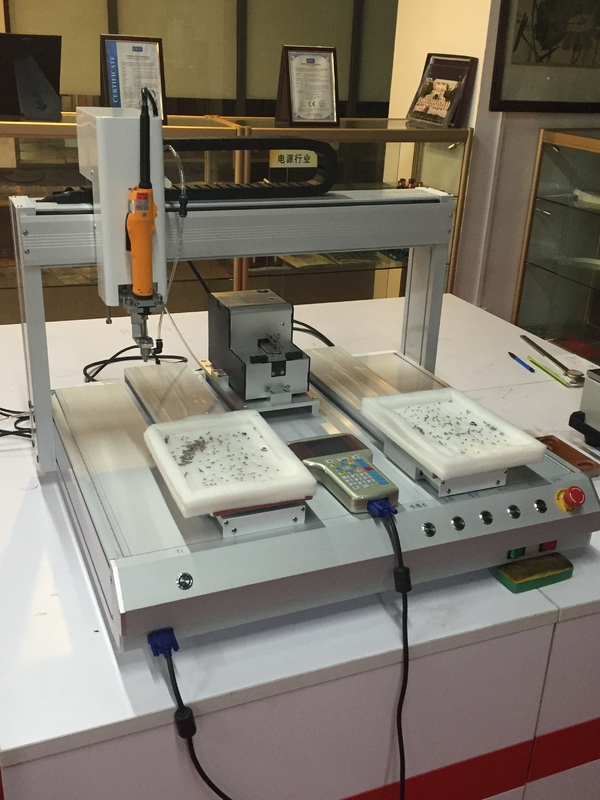

Large Image :  PLC + TP Automatic Screwdriver Machine Adapted To M1.0 ‐ M4.0 Screw Lock

Product Details:

Place of Origin: China
Brand Name: Chuangwei CWLS-2A
Certification: CE certificate
Model Number: CWLS-2A Automatic Screwdriver Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 8 work days
Supply Ability: 1200 sets/ year
Contact Now
Detailed Product Description
MOQ: 1 Set Automatic Screwdriver Machine: +- 0.02mm
Control System: PLC + TP Warranty: Free For One Year
Application: Calculators, Navigation, Audio, Camera, Laptop, Tablet PC Shipping Way: EXW / FOB / CIF





PLC + TP Automatic Screwdriver Machine Adapted To M1.0 ‐ M4.0 Screw Lock





Specification :


Working Range : 500 ( X ) * 300 ( Y1 ) * 300 ( Y2 ) * 100 ( Z ) mm
Drive mode : 3 axis driver
Position accuracy  : ± 0.02 mm
Control system : PLC + TP
Screw Feeding : absorption type
Operation method : by Programming
Working Speed: Min < 1.2S
Program memory : 0‐99 groups
Voltage : 220VAC , 50HZ
Air Pressure : 4‐5kg / cm2
Size : 620 * 600 * 720 mm

Weight : 80kgs




CWLS-2A, Automatic Screwdriver Machine Feature :


1 , With intelligent detection function , can automatically detect leakage lock , lock , slide tooth , double Y design , and able to work alternately
2 , Strong flexibility , the standard universal fixture applicable model of screw lock.
3 , Strong commonality , replace the screw conveyor modules can be adapted to M1.0 ‐ M4.0 screw lock .
4 , Equipment for small , save space , reduce the plant resources . Easy to put into the production line , and before the standard after the function .
5 , Double Y design , alternating operation , maximize production efficiency , production of profit maximization , the lowest cost of production .
6 , Application : Especially suitable for all kinds of screw lock pay of consumer electronics , such as calculators , navigation , audio , camera , laptop , tablet PC ,
learning machine , small home appliance , etc .
