Automatic FPC Soldering Machine Fast Speed Use For LCD Repair

Automatic FPC Soldering Machine Fast Speed Use For LCD Repair
Automatic FPC Soldering Machine Fast Speed Use For LCD Repair Automatic FPC Soldering Machine Fast Speed Use For LCD Repair Automatic FPC Soldering Machine Fast Speed Use For LCD Repair

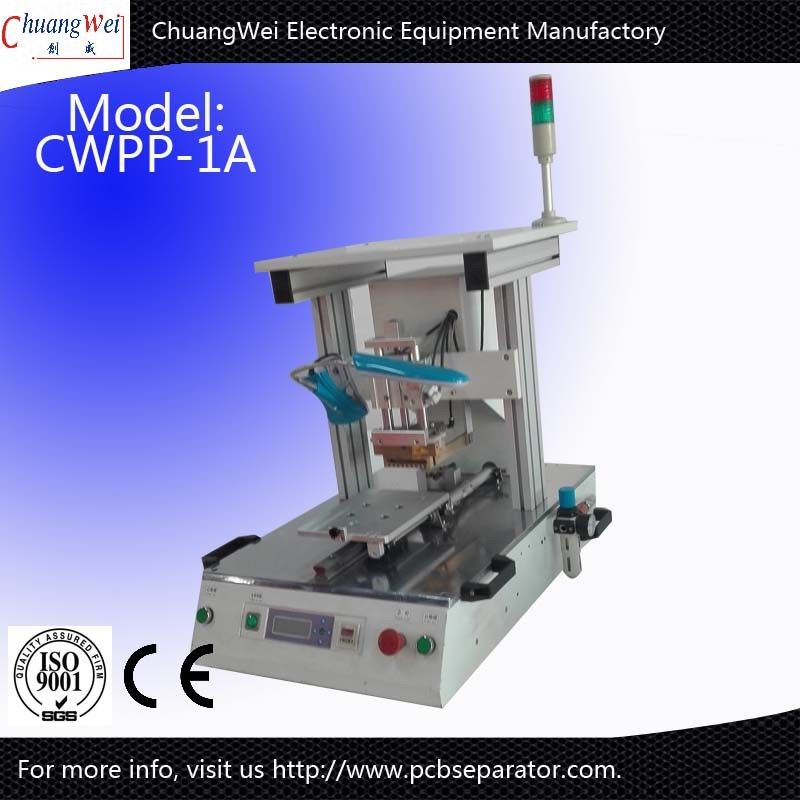

Large Image :  Automatic FPC Soldering Machine Fast Speed Use For LCD Repair

Product Details:

Place of Origin: China
Brand Name: Chuangwei fpc soldering machine
Certification: CE certificate
Model Number: CWPP-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5 work days
Supply Ability: 1000 sets per year
Detailed Product Description
Pack Size: 950*700*800mm Pack Weight: 164 Kg
Lead Time: 5-7 Days Warranty: Free For One Year
Remark: We Can Arrange To Shipping Machine According To Customers Requirement Name: Fpc Soldering Machine
High Light:

pcb welding machine

,

bonding machine

Automatic FPC Soldering Machine Use For LCD Repair With Fast Speed





Technical parameters



Model CWPP-1A
Machine Size 620mm X 690mm X 570mm
Work Area 200mm X 260mm
Air pressing 0.45-0.70Mpa
Machine Weight 90KG





Temperature setting



20-500 C

Bonding time



1-99s

Temperature precision



+-2

bonding force



0.1-0.6Pa

Precision



0.05 Pa



Fixture 1 set







Features :



Pulse Heated Soldering Machine with Linear Guideway( CWPP-1A)
1 . Unique pulse heat technology provides fastest soldering head heating.
2 . Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3 . Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4 . Closed Loop PID temperature control with clearly visible LED display.
5 . Soldering time can be programmable and is triggered by temperature.
6 . Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7 . Programmable pressure switch with LCD display for precise force control.
8 . CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.





Detailed Pictures :



Automatic FPC Soldering Machine Fast Speed Use For LCD Repair 0

Automatic FPC Soldering Machine Fast Speed Use For LCD Repair 1
