High Precision CCD Automatic Positioning Pcb Depaneling Equipment for 600*450mm PCB

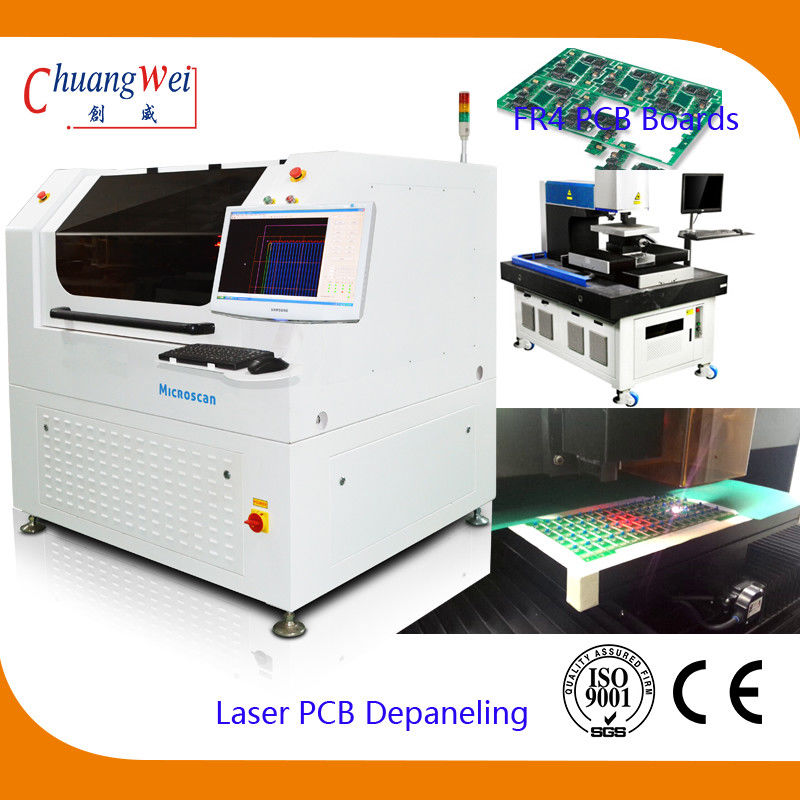

Large Image : High Precision CCD Automatic Positioning Pcb Depaneling Equipment for 600*450mm PCB

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei PCB Depaneling Machine
Certification:	CE ROHS
Model Number:	CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	each set be packed in plywood case
Delivery Time:	7 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	260 sets per month

Contact Now

Detailed Product Description

Material::	Marble	Data Input Formats:	Gerber, X-Gerber, DXF
Voltage:	110V/220V	Machine Size:	1480mm1360mm 1412 Mm
Weight:	1500kgs	Name:	Laser PCB Cutting Machine
Highlight:	medical Drying Cabinet , dry storage cabinets

Laser PCB Cutting Machine Laser Depaneling Worked for 600*450mm PCB

Specification

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Power	10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	460mmX460mm(Customizable)
Laser Scanning Speed	2500mm/s (max)
Galvanometer Working Field Per One Process	40mmх40mm

Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate
positioning, save time and no worries.
Friendly interface,Simple operation, easy to use, free application; Small size, Save more
space; rigorous security design;
Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance

If you're in need of this laser PCB Depaneling Machine,please let us know:

Email: s5@smtfly.com

Wechat/Whatsapp: +86 136 8490 4990
