High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting

China High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting supplier
High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting supplier High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting supplier High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting supplier

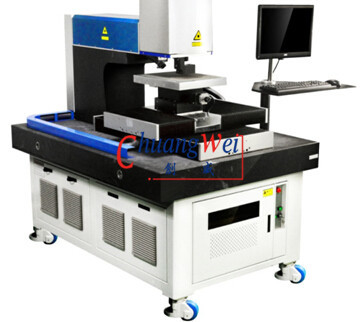

Large Image :  High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWVC-5S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: within 3 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Contact Now
Detailed Product Description
Function: Laser Depaneling Advantage: Smooth Edge
Machine Weight: 1500kgs Operation System: Windows 7
Power: 220V 380v Name: Laser Depaneling



Laser PCB Depanelizer Machine for Neat and Smooth Edge Cutting Advantages of Laser PCB Depaneling/Singulation



  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards



Description:



Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/12W/15W/18W@30KHz

Galvanometer working field Per One Process: 40 × 40mm

Power consumption for the hole machine: 2KW



Specification:



Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmX460mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm

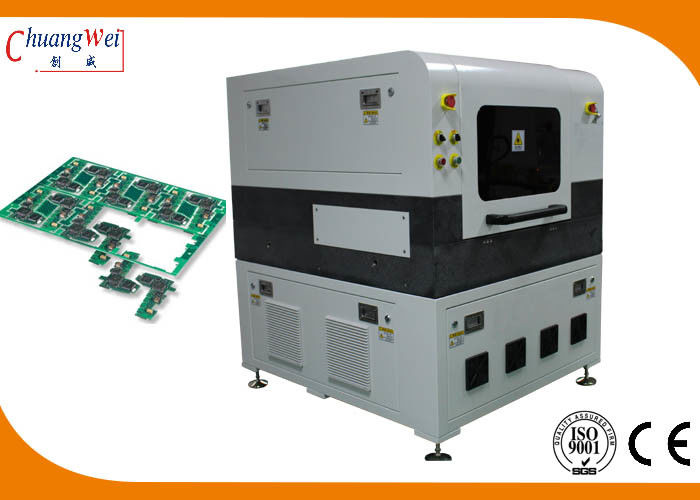

High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting        High Speed Laser PCB Depanelizer Machine for Neat / Mooth Edge Cutting
