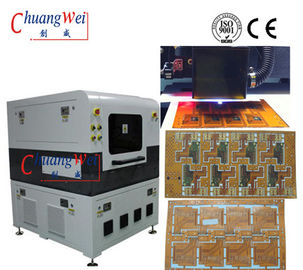

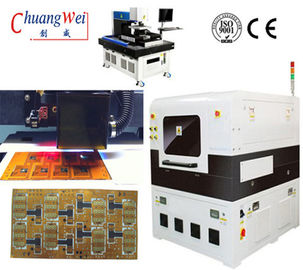

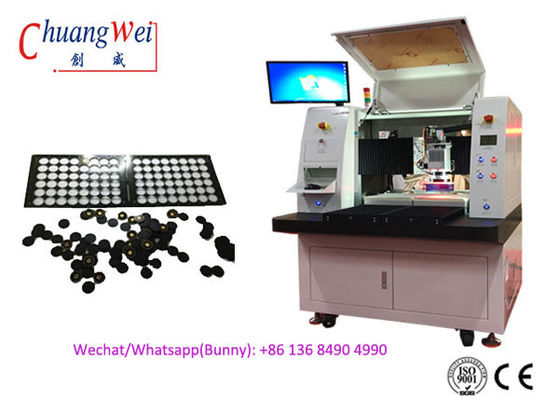

High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W

China High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W supplier
High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W supplier High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W supplier High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W supplier

Large Image :  High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W

Product Details:

Place of Origin: China
Brand Name: chuangwei
Certification: CE
Model Number: CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Contact Now
Detailed Product Description
Name: Laser PCB Depaneler Weight: 1500kgs
Shipping: FOB / EXW Laser: USA Brand Optowave
Power: 220V 380v Warranty: 1 Year



Cost-effective Laser PCB Depaneler Machine for High Accuracy Depaneling Cutting Application



FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.



Specification



Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmX460mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm



Advantages:



  • Auto vision positioning
  • Cost saving – no consumables and die wear
  • Able to cut odd, complex and micro shape section out of PCBs
  • No mechanical stress on product
  • Quick model change turnaround time
  • Excellent cut finish

High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W
