Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB

Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB
Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB

Large Image :  Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB

Product Details:

Place of Origin: Dongguang china
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWPC-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case (fumigation can offer according to customer)
Delivery Time: 3-5 days after payment confirm
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 300 sets/month
Detailed Product Description
Working Area (mm): 200*260 Air Pressing (MPa): 0.45~0.7
Operation Butom: Press Two Butoms At The Same Time LCD: Set Program
Cooling: Air Warning Light: Ensure Operate Correctly
High Light:

pcb welding machine

,

bonding machine





Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB



Specification:



welding machine
1. Accurate Tin press,not drag
2. Accurate heat
3. Fine-pitch position
4. Digital program pressure control



Model

CWPC-1A

Working area (mm)

200*260

Air pressing (MPa)

0.45~0.7

Size (MM)

620*690*570

Weight (Kg)

95

Guarantee

1 Year

Delivery

1 Day

Min. Order

1 Set

Ability

1000 Sets



Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB 0







Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)



2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!





Technical characteristics:


1. Structural precision, the load evenly, to eliminate internal stress



2. Safe, easy to operate



3. Electronic component won't short circuit





Feature:

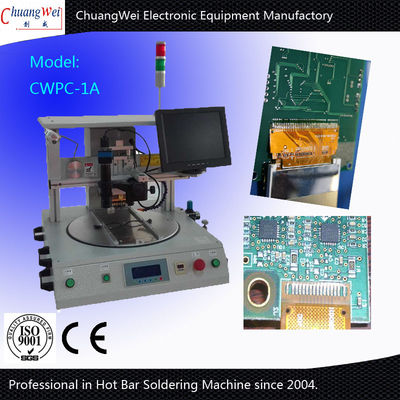

Pulse-Heated Soldering Machine with Pneumatic Rotary Turntable CWPC-1A



1. Extremely short cycle time with rotary table design. Product loading and unloading can be done during the heat sealing process
2. High quality heat seal application up to 0.25mm pitch
3. Pneumatic bonding head provide up to 3,900N force
4. Digital programmable pressure control with LCD display
5. Closed loop PID temperature control with visible LED display
6. Bonding cycle is triggered by a real time pressure sensor
7. Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
8. Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components
9. Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
10. Full microprocessor logic control







Our Advantage :



1. Promise day technical support services



2. Limit the handling of complaints, half an hour back to customers



3. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying



Our production



Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB 1



Why us



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine






CE Approval



Thermode Hot Bar Soldering Machine For TAB FFC FPC To LCD PCB 2
