Product Details:
Payment & Shipping Terms:
|
| Cylinder Output(kgf):: | 181-272 | Cylinder Stroke(mm) :: | 10 |
|---|---|---|---|
| Warranty: | Free For One Year | Blade: | High Speed Steel |
| Operating Pressure (bar):: | 4～6 | Weight(kg):: | 5.7 |
| High Light: | PCB depaneling,PCB Cutting Shear,Off Cut Remover PCB Depaneling Machine |
||

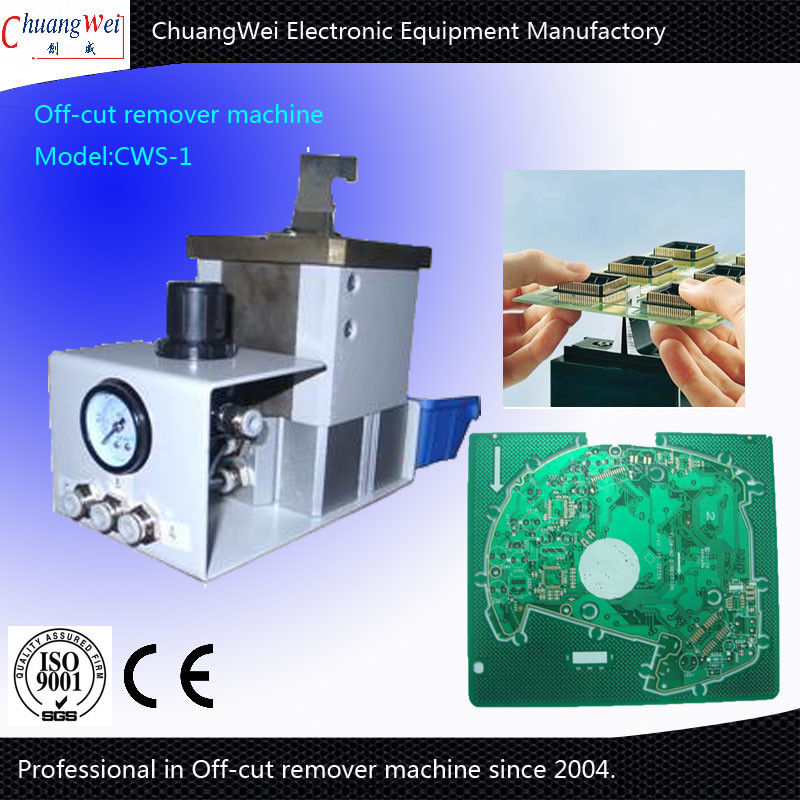

Off Cut Remover PCB Separator Pneumatic Nibbler With 4-6 Bar Operating Pressure
Feature :
1. Upper blade and lower blade are made of special material and durable.
2. Minimize the shearing stress to avoid micro-cracks of the soldering joint.
3. It is applicable for complex structure of double-panel, with different
thinkness of cutter can fit to different width of V-groove.
4. Easy and convinence to change the cutter .
5. Reliable operate and high efficinence for Pneumatically driven ,footswitch
control.
6. Supporting PCB with four supporting pin to keep PCB lever to improve
the quality of cutting ,otherwise, easy to move the supporting pin .
7. The thickness and the height for cutter can be custome made .
8. Easy to fetch and give for waste box.
Specification:
| Weight(kg): | 8 |
| Operating pressure (bar): | 4～6 |
| Cylinder bore(mm): | Φ80 |
| Cylinder stroke(mm) : | 10 |
| Cylinder Output(kgf): | 181-272 |
| Max.Cutting thickness(mm): | 2.50 |
| Max.Cutting width(mm): | 8 |
| Max.Accessary height(mm): | 25.00 |
Why choose us
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3..Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
About us
|
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry. |
|
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. |
|
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China |
|
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
|
|
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry. |
Our production flow
CE Approval
More information welcome to contact us:
Email/Skype: s5@smtfly.com
Mobile/Wechat/WhatsApp: +86-136-8490-4990
Contact Person: Mr. Alan
Tel: 86-13922521978
Fax: 86-769-82784046
