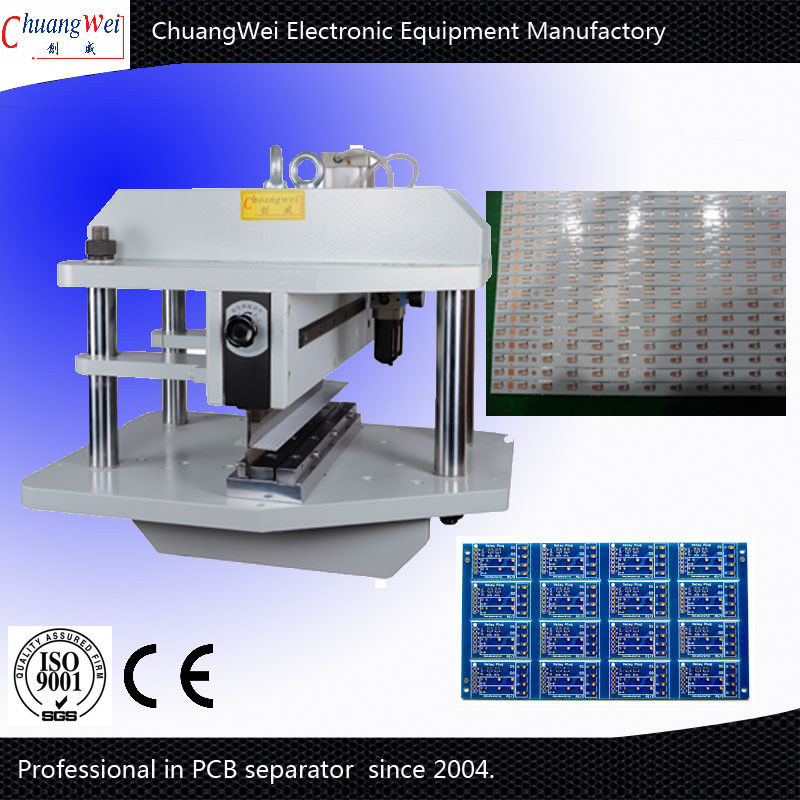

High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB

High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB
High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB

Large Image :  High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWVC-450C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 800 sets/year
Detailed Product Description
Warranty: One Year Balde Material: High Speed Steel
Blade Life: 7-8 Months Cutting Thickness: 0.3-3.5mm
Cutting Speed: Operator Skill Level Certification: CE ISO
High Light:

PCB depanelization machine

,

PCB Cutting Machine





High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB







***V CUT PCB shearing machine features***


1. Pneumatically driven and electromagnetic valve control.
2. Shearing process without vibrations due to pneumatic drive unit .
3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4. Shearing operation is that operator stamps the foot pedal to shear PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between  V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.





***V CUT PCB shearing machine***

1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be sheared safely
3. Shearing process without vibrations due to pneumatic drive unit


***V CUT PCB depaneling machine specifications***



Model CWVC-450C
Max. PCB shearing length      unlimit
PCB  shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V       10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size    620*230*400mm
PCB shearing machine weight 165kg



Clients Feedback



High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB 0

High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB 1





Why choose us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



3.. Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



4.  Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend


About us



Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.

Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China

Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.



Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.



Production flow



High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB 2









CE approval



High Speed Steel Linear Blades Pneumatic Metal Cutter Machine For Rigid PCB 3
