Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine

China Dongguan Chuangwei Electronic Equipment Manufactory certification
China Dongguan Chuangwei Electronic Equipment Manufactory certification
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine

Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine

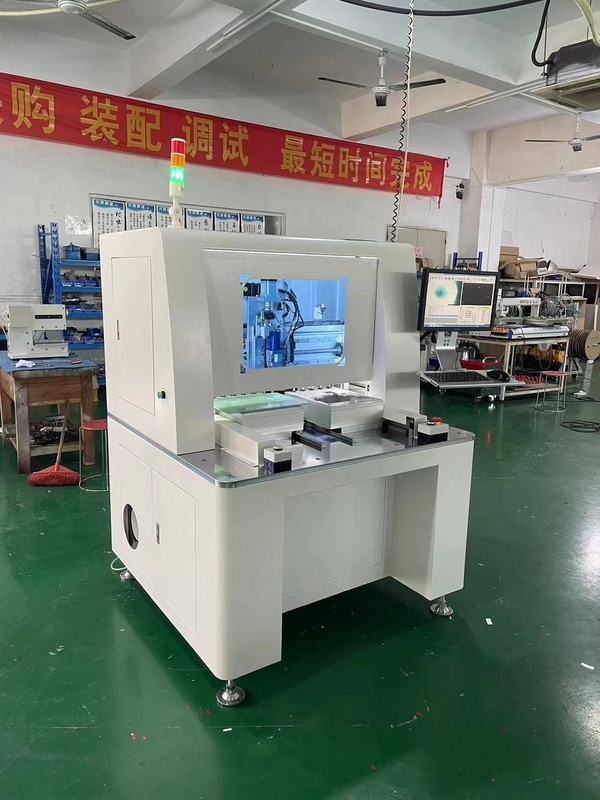

Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine

Large Image :  Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CW-F01

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days when deposit recieved
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Power(W): 400 Condition: New
PCB Router: Axis Precision Precision Of Cutting: 0.01mm
Max Pcb Thickness: 5mm Max Pcb: 322*322mm
High Light:

PCB Cutting Shear

,

PCB separators

,

Floor Style CNC PCB Router



Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine​

CW-F01 profile:

CW-F01 automatic visual cutting machine is the latest designed high-tech product of a new generation, with (Machine Vision)automatic visual identification and correction function, applied by high-accuracy Panasonic servo drive system to realize quick and precise positioning, rendering accuracy at 0.001mm maximum to ensure the high quality of the cutting and high productivity.



Specification:



Software:



Control system

Windows XP Professional  (Service3,v.3244)

Operation GUI

Chinese Windows XP

Program edit

Inline

Vision system

CCD AOTU offset

Control system

F 1.0.2 version



Hardware:



SPINDLE Morning Star spindle and inverter



CCD

Sony 520 line industrial cameras

LENS

Computar  EX2C

Screw

TBI Precision ground ball screw imports

Guide

HIWIN widening Imported linear guide rail

MOTOR

JiaBao LCF Series

I/O CONTRONL CARD

HFC  PCI-9074

DRIVER CONTRONL CARD

HFC  PCI-9074

I/O CARD

PCI-9074-64pcs/-38pcs

Static cleanup

STATIC-ST401A Series

Computer

RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G

Machine interface

AOC LCD17",Logitech mouse



Performance Parameters:





Overall

Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm



Manipulator

Motor type

 JiaBao series

Positioning repeatability

0.001mm

Axis working area(max)

 680mm*360mm*50mm



Work station

Work station

 standard,specialization

PCB loading/unloading

manual

PCB size (max)

322mm*322mm

PCB thick (max)

 5mm



Fixturing

Rigidity fixturing

standard

Fixturing fixation

machinery



Spindle Motor

Power

 400W

Spindle

50000rpm/min

Protect

self/wind cooling

Change cutter

 Specialization



Routing capability

Cutting speed(max.)

 100mm/s

Driving speed(max.)

3000mm/s

Precision of cutting

0.01mm



Vacuum System

Vacuum power

2.2KW AC 380V



Vacuum plumb



Utilities

Power

2.2KW AC380V

Air supply

2~5KG/cm2



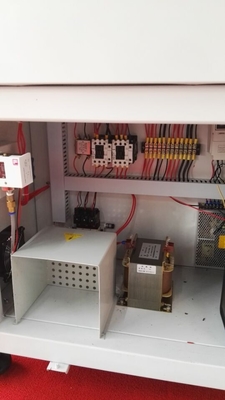

Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine 0

Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine 1

Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine 2



Why choose us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



3..Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



4. Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the amarket development trend



CE approval if you need,please contact us:
