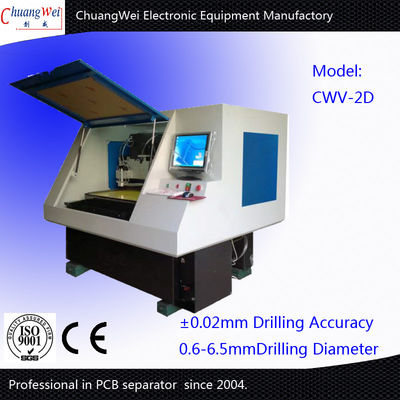

Two - Station PCB Separation CNC Drilling And Milling Machine

China Two - Station PCB Separation CNC Drilling And Milling Machine supplier
Two - Station PCB Separation CNC Drilling And Milling Machine supplier Two - Station PCB Separation CNC Drilling And Milling Machine supplier Two - Station PCB Separation CNC Drilling And Milling Machine supplier

Large Image :  Two - Station PCB Separation CNC Drilling And Milling Machine

Product Details:

Place of Origin: Dongguang China
Brand Name: chuangwei
Certification: CE ISO
Model Number: CWV-2D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Cooling Mode(principal Axis): Circulating Water Cooling Working Environment: Centigrade Degree: 20-25℃, RH:75%
Compressed Air Requirement: 0.5MPa Drilling Diameter: 0.6-6.5mm
Spindle Rotation Range: 40000 Rmp Type: Drilling And Milling Machine





Two - Station PCB Separation CNC Drilling And Milling Machine



Feature:



1. Use the CW intelligence control system created by Chuangwei which has good stability and support network
program U drive disk, superior to other control systems of China


2. Use the frequency conversion system of Delta or adleepower, Such as the Processing speed could be improved
30% using 60000 turn spindle.


3. Using the high precision linear guide rail and high precision ball screw, made in Taiwan.


4. Each axis is driven by AC servo combination.


5. Control software: The software, Such as CAM350/V2001/GENESIS2000 product the ROU,ROT,NC,DRL,
GBR etc;


control software:
support to edit or auto-compensate ROU,ROT,NC,DRL,GBR which are processed by autosoftwares like
CAM350V2001.


And have functions such as graphical automatic optimization of machining path, hierarchical drill-down, simulation
process and autopromping


6. Machine cover:
International standards for the professional control box together with the hood times full steel structure



Technical parameters:



Item Description Notes
Operating stroke(XYZ) 550*650*60mm Actual working range
Drilling Accuracy ±0.02mm
Rapid Positioning Speed 25m/min
Spindle Rotation Range 40000 rmp Spindle motor power 1.5kw
Drilling Diameter 0.6-6.5mm
Tool Change Mode manual ER11
Controller Interface Chinese/English
Automatic stripping selectable selectable
Power Requirement AC220V/50Hz / 4000W
Dimension 1820*1550*1450 mm
Cooling mode(principal axis) Circulating water cooling
Machine Weight(kg) 2000
Working Environment Centigrade degree: 20-25℃, RH:75%
Compressed air requirement 0.5MPa
Applicable All PCB(MCPCB) drilling / milling



Machine layout:



Name Brand Country of origin Notes
Guide PMI  Taiwan, China
Screw TBI Taiwan, China
Principal axis Chuangwei China
Servo System Fuji Japan
Frequency spindle Adleepower Taiwan, China High frequency
Computer HP China 19 liquid crystal display
(HP original)
The machine table Jinanqin Shandong, China granite



Customers comments



Two - Station PCB Separation CNC Drilling And Milling Machine



Two - Station PCB Separation CNC Drilling And Milling Machine





Why choose us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



3..Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



4. Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend
