3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path

China 3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path supplier
3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path supplier 3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path supplier

Large Image :  3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWDJ-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per months
Contact Now
Detailed Product Description
Operating Temperature: 10~40°C Interpolationlinear/circular: 3 Axis
Repeatability: +/- 0.01mm / Axis Program Method: Teach Pendant
Power Supply: AC 90~260V 300W Motor System: Micro Stepping Motor

3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path Details:


1. English keyboard operation, easy to learn and easy to understand;

2. With a draw point, line, surface, arc, circle. Irregular curves and three-axis continuous interpolation functions such linkage;


X/Y/Z working area (mm)400/400/100
Load worktable10.0kg / 5.0kg
Speed PTP X&Y/Z (mm/sec)0.1~800/500
Repeatability+/- 0.01mm / axis
Resolution0.01mm/axis
Data memory100 programs, 4000 points/program
Data storageCF card
Program DisplayTeach pendant LCD
Operation systemPTP (point to point) & CP (continuous path)
Interpolation linear/circular3 axis
Program  methodTeach pendant
I/O signals8 inputs / 8 outputs
External interfaceRS232
Power supplyAC 90~260V 300W
Operating temperature10~40°C
Motor systemMicro stepping motor



Applicable fluid: silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.

Main use: the product in the process of bonding, infusion, coating, sealing, filling, drop, linear/arc/round glue,etc.

Common application scope: automobile mechanical parts coating, cell phone buttons point glue, mobile
phone battery packaging, laptop battery package, the coil point glue, PCB bond fixed sealant, IC sealant, hornexternal punctuate glue, PDA sealant, LCD sealant, IC packaging, IC bonding, casing bonding, optical device processing, mechanical seal, etc.


Why us

1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3.Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend

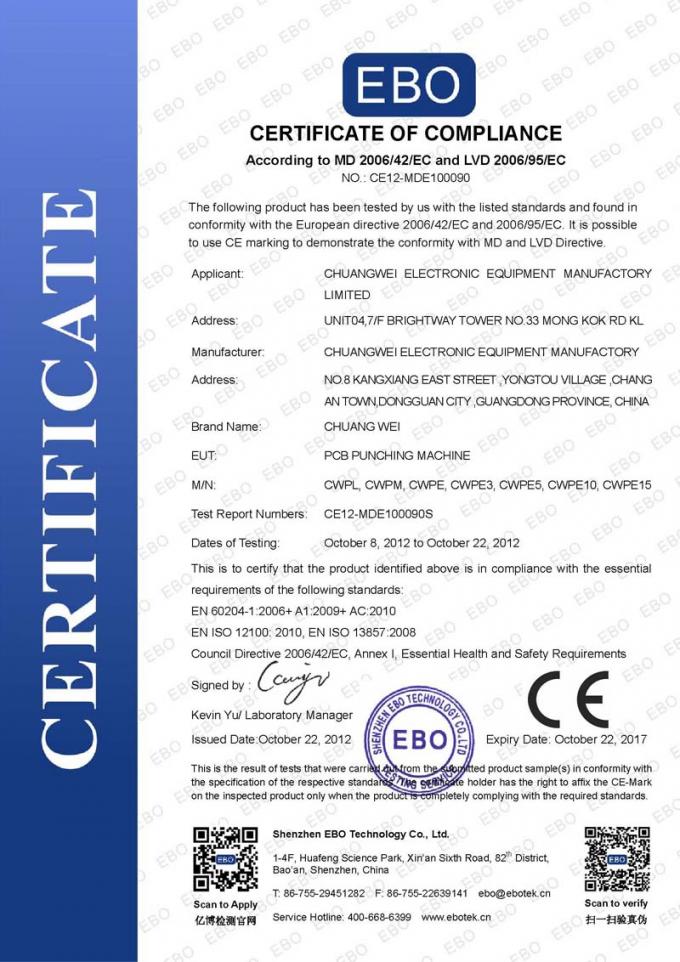

CE Approval

3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path
