Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance

China Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance supplier
Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance supplier Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance supplier

Large Image :  Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance

Product Details:

Place of Origin: Donggguang china
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWD-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 set per month
Contact Now
Detailed Product Description
Resolution: ±0.01mm Configuration: X、Y、Z 3 Axis
Repeatability: <0.1mm PCB Thickness: 0.4mm-4mm
Security Settings: Emergency Stop Switch Spindle Motor Speed: 50000r/m
High Light:

pcb depanelization

,

PCB Cutting Shear

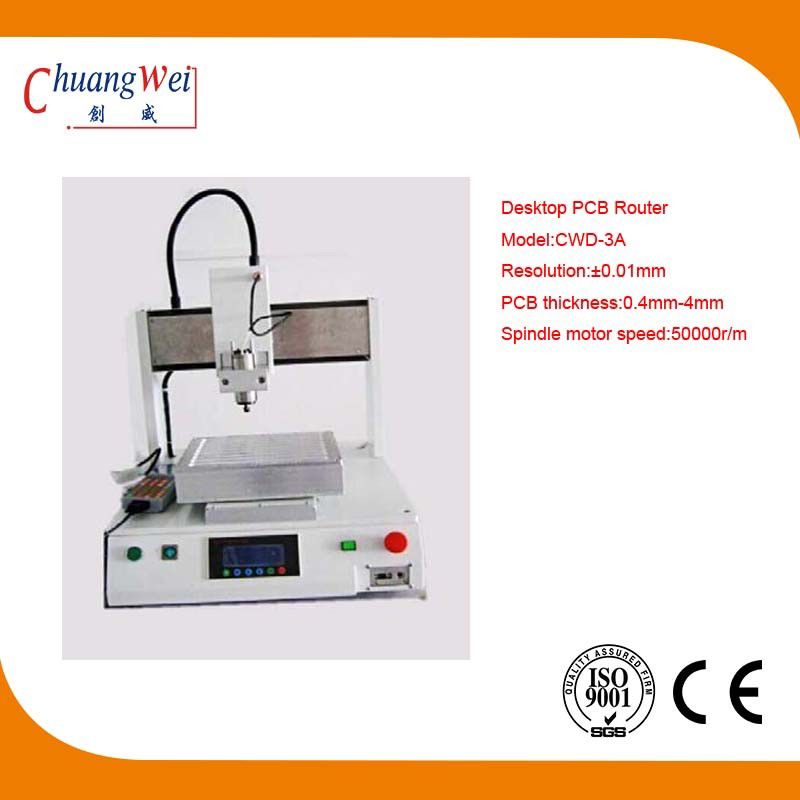

High-Quality Hardware Desktop Pcb Router With Emergency Switch  Pcb Depanel CWD-3A



Feature:


● Desktop single bench cutting machine, Speeds of up to 100mm/s,positioning speed 500mm/s


● Cut continuously without interruption during loading and unloading


● High quality shaft system allows the system to quickly ramp,reduce the period of time, Improve productivity, maintaining high precision


●Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft


●Use high-quality hardware to ensure high rigidity and high performance



Specification:



Motor drive system Servo / stepper motor
Spindle speed 50000r/s
Cutting performance 500mm/s
Drive system repeatability ±0.02mm
Cutting speed Max 100mm/S(depends on PCB material and cutting quality)
Resolution ±0.01mm
Configuration X,Y,Z 3 axis
PCB positioning fixture
Security settings emergency stop switch
Machine dimension 650*550*615mm



CE approval:



Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance 0





Production flow;



Hardware Desktop PCB Cutting Machine With Emergency Switch High Performance 1
