Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval

China Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval supplier
Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval supplier Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval supplier Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval supplier

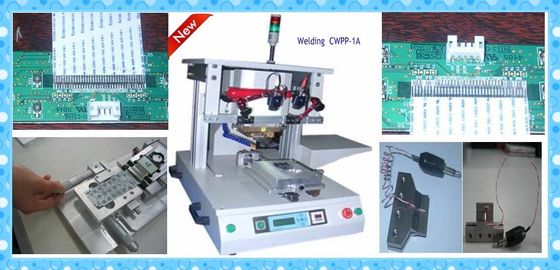

Large Image :  Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval

Product Details:

Place of Origin: Dongguang china
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWPP-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 300 sets /month
Contact Now
Detailed Product Description
Momentary Welding Power:: 2000W Force Head Pressure:: 0.1-0.6 MPa
Temperature Precision: ±2℃ Temperature Setting: 20-500℃
Hot-pressing Time: 1-99 S Working Air Pressure: 0.45-0.7Mpa



Hot Bar PCB Soldering Machine With Pulse Heat For Soft To Hard , CE Approval CWPP-1A



Specification:



Model

CWPP-1A

Working area (mm)

200*260

Air pressing (MPa)

0.45~0.7

Size (MM)

500*750*640

Weight (Kg)

90

Guarantee

1 Year

Delivery

1 Day

Min. Order

1 Set

Ability

1000 Sets





Hot BAR welding machine


1. Accurate Tin press,not drag


2. Accurate heat


3. Fine-pitch positioning


4. Precise force control



Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)



2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!!!!



Technical characteristics:


1. Structural precision, the load evenly, to eliminate internal stress



2. Safe, easy to operate



3. Electronic component won't short circuit



Feature:



1. Unique pulse heat technology provides fastest soldering head heating.


2. Programmable soldering temperature, heat-up rate and time duration for a wide range of products.


3. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.


4. Closed Loop PID temperature control with clearly visible LED display.


5. Soldering time can be programmable and is triggered by temperature.


6. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.


7. Programmable pressure switch with LCD display for precise force control.


8. CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.



Our Advantage :



1. original manufacturers, price concessions



2. Promise day technical support services



3. Limit the handling of complaints, half an hour back to customers



4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying
