40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades

China 40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades supplier
40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades supplier 40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades supplier 40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades supplier 40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades supplier

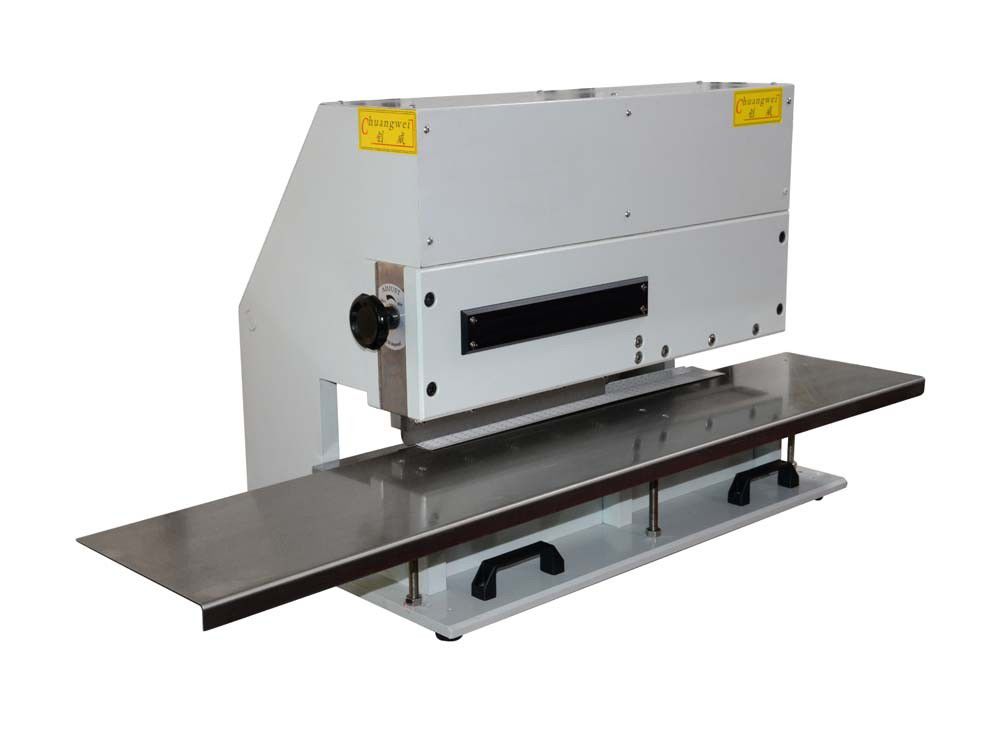

Large Image :  40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades

Product Details:

Place of Origin: Dongguan China
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWVC-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union,paypal
Contact Now
Detailed Product Description
Blade Material: Import High Speed Steel From Japan Shearing Thickness: 0.3-3.5mm
Shearing Speed: Due To Operator Skill Level Shearing Length: No Limit
Type: Pneumatic Weight: 165kg


40mm Components Height Pcb Depaneling Machine With Two High Speed Steel Blades CWVC-3 Details:

1. Place of Origin: Guangdong, China (Mainland)
2. Brand Name: chuangwei pcb depaneling
3. Model Number: CWVC-3 pcb depaneling
4. Packing: plywooden case
5. Cutting board: cut PCB/LED/FR4 board
6. Thickness: 0.5-3.5mm
7. Weight: 220KG
8. Payment term: T/T or L/C

Specifications:


Model:

CWVC-3

The Longest Minimize:

unlimted

Size:

780mmx500mmx620mm

Minimize Thickness:

0.3-3.5mm

Working Area:

330*220mm

Machine Weight:

185Kg


40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades
Features:

1. Cut any length metal board  more safety and easily.
2. Separates long boards directly,without turn direction .
3. Separates boards up to 2.0mm  thick  Metal Board
4. Shears boards safely with parts as close as 1 mm to the  score line,including ceramic capacitors
5. Operator foolproof! Panels cannot be inserted into the knives except on the score line
6. Handles high components up to50mm
7. Bow waves that can occur with round knives are avoided
8. Easy adjusting of distance between knives

Why us


  1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support


  1. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router
Our R&D team continuously upgrade the existing machines to meet the market development trend.


  1. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge


  1.  Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers


Our mission
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success



Competitive Advantage:

1. CWVC-3 Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme.

CE certification:

40mm Components Height Pcb Depaneling Machine With 2 High Speed Steel Blades
