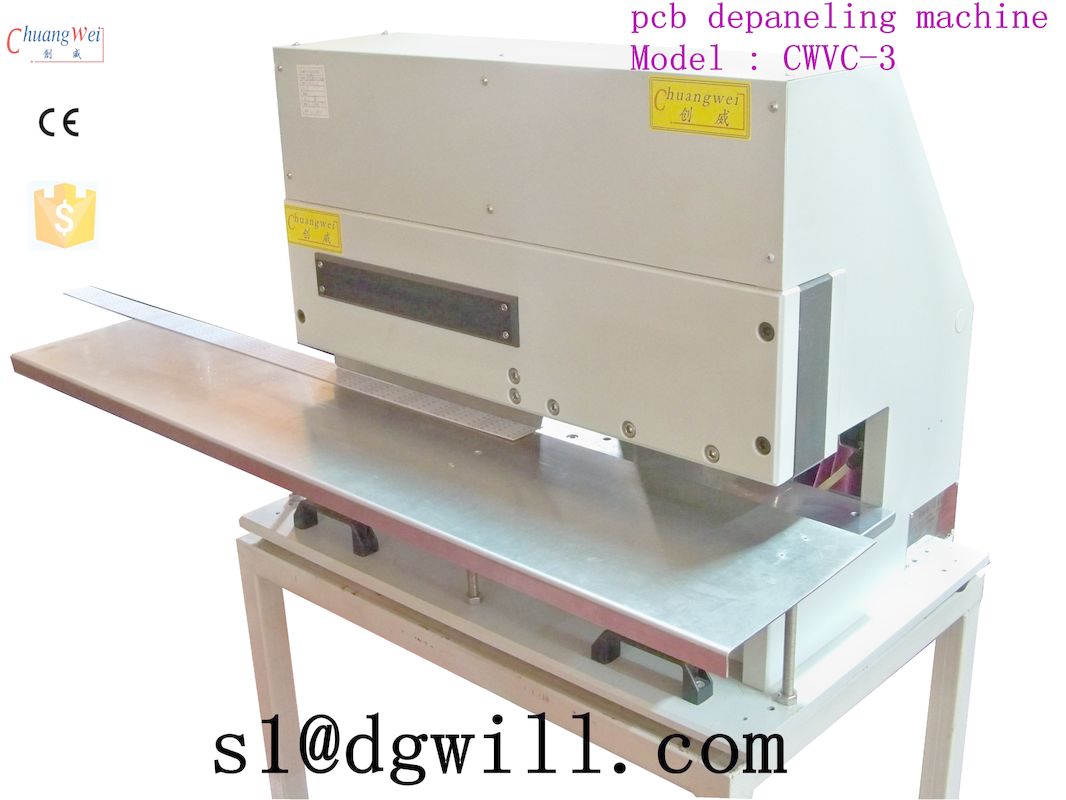

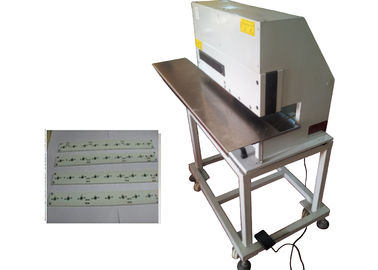

LED Alum Pcb Depanelizer Machine With Unlimited Cutting Length

China LED Alum Pcb Depanelizer Machine With Unlimited Cutting Length supplier
LED Alum Pcb Depanelizer Machine With Unlimited Cutting Length supplier LED Alum Pcb Depanelizer Machine With Unlimited Cutting Length supplier

Large Image :  LED Alum Pcb Depanelizer Machine With Unlimited Cutting Length

Product Details:

Place of Origin: China
Brand Name: Chuangwei PCB Separator
Certification: CE certificate
Model Number: CWVC-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80 set/s month
Contact Now
Detailed Product Description
Cutting Length: Unlimited Material: High Speed Steel
Type: Pneumatic Type Warranty: Free For One Year
Shipping Way: EXW / FOB Establish Year: 1999

Led Alum Pcb Depanelizer Machine With Unlimited Cutting Length Specification:



Model

CWVC-3
The Max Cutting Length unlimited
Machine size 780*500*620mm
Machine weight 185kg
cutting thickness 0.3-3.5mm



Features:



1) Separates boards up to 3.5mm thick

2) Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors

3) Operator foolproof! Panels cannot be inserted into the  knives except on the score line

4) Handles high components up to70mm

5) Bow waves that can occur with round knives are avoided

6) Easy adjusting of distance between knives



Advantages:



- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- depaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance
