Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory

China Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory supplier
Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory supplier Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory supplier Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory supplier

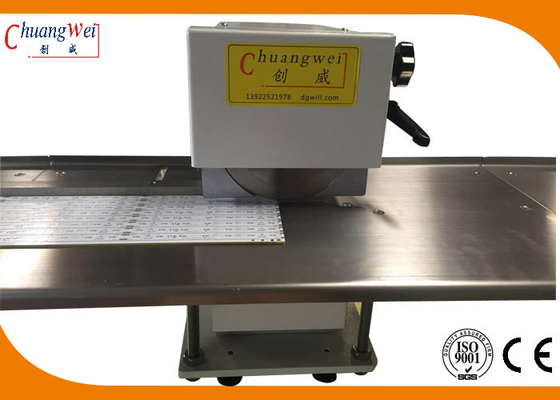

Large Image :  Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb depaneling
Certification: CE Certificate

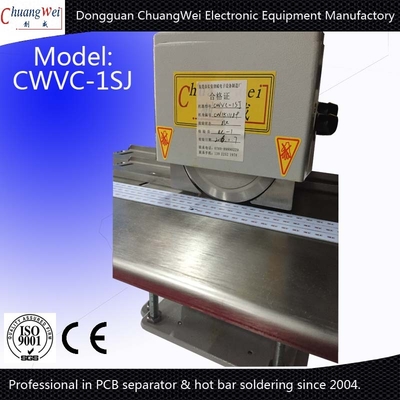

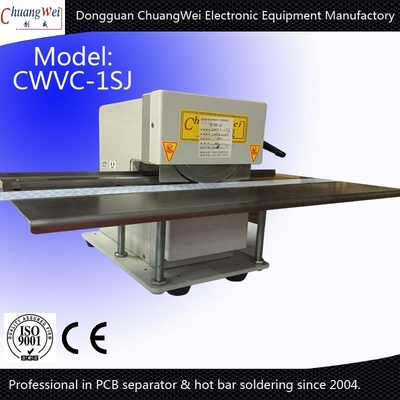

Model Number: CWVC-1SJ

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: within 3 days after confirm the payment
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 1000 sets / year
Contact Now
Detailed Product Description
Material: High Speed Steel Number Of Blades: Two Pieces
Blades Type: 2 Circle Blades Cutting Length: Unlimited
Shipping Way: EXW / FOB (Option ) Warranty: Free For One Year



Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory Specification:



Application PCB : V-CUT and S.9 M.T.PCB ( substrate )
Motor speed : Max 1380 / min ( adjustable )
Cutting speed : Max 0-24 meter / min ( adjustable )
Max PCB cutting width : 240 mm
Maximum board component height : 40 mm
Max V-CUT Thickness : 0.6-2.0 mm
Voltage : 220V / 110V ,50HZ
Weight : 45kg
Size : 350 * 300 * 400 mm
Power : 40W



Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory


Machine features:



Suitable for the engraving of the plates with V-cut groove , reduce the stress , can prevent the solder joint to crack effectively .
Made of high intensity aluminum alloy except the machine frame .
Simple constructure , light weight , more easy and convenient to move and ship .
Bottom blade adjustable function : The bottom blade base is fine adjustable , it is convenient to operate the point to point .
The top and the bottom guide plate can be adjusted manually to solve the problem of the different height caused by the V-CUT groove .
The top blade base adjust range : 0 ~ 7 mm .
High Efficiency : Vmax = 550 mm / s ( Adjustable ) .
High accuracy and safe , easy to operate and maintenance .
The width of the plate that can be cut : 0.6 mm ~ 3.0 mm ( the length is no limit ) .



Our team focuses on providing high quality products with reasonable price and tries its best to keep transactions as simple as possible .
Please feel free to contact us email s1atdgwilldotcom



Our service



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine
