V Cut PCB Separation Machine Pre Scoring PCB Depaneling for T8 T5 LED Tube

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

V Cut PCB Separation Machine Pre Scoring PCB Depaneling for T8 T5 LED Tube

China V Cut PCB Separation Machine Pre Scoring PCB Depaneling for T8 T5 LED Tube supplier
V Cut PCB Separation Machine Pre Scoring PCB Depaneling for T8 T5 LED Tube supplier V Cut PCB Separation Machine Pre Scoring PCB Depaneling for T8 T5 LED Tube supplier

Large Image :  V Cut PCB Separation Machine Pre Scoring PCB Depaneling for T8 T5 LED Tube

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separation
Certification: CE certificate
Model Number: CWVC-1SJ pcb separation

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: within 3 days after confirm the payment
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 80 sets / month
Contact Now
Detailed Product Description
Material: High Speed Steel Number Of Blades: Two Pieces Of Circle Blades
MOQ: 1 Set Cutting Length: Unlimited
Shipping Way: EXW / FOB (Option ) Warranty: Free For One Year

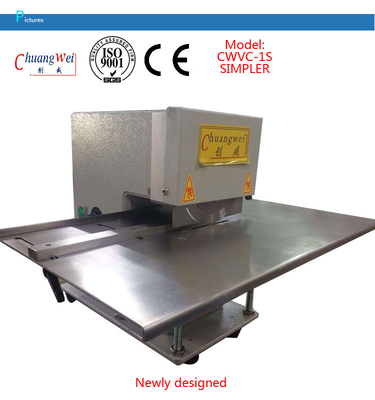

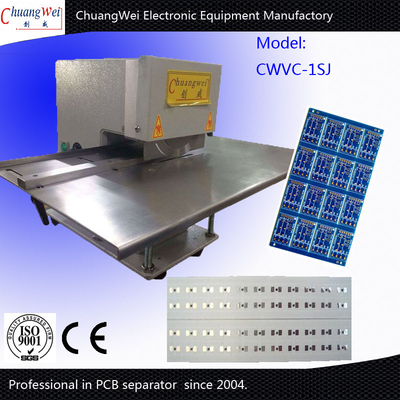

V Cut  PCB Separation Machine Pre Scoring PCB Depaneling For T8 T5  LED Tube


Brand new V Cut Groove PCB Separating Separator Cutting Machine
New V cut grove PCB separator cutting machine USG
Brand new V Cut Groove PCB Separating Separator Cutting Machine
V Cut Groove PCB Separating Separator Cutting Machine cutter
V Cut Groove PCB Separating Separator Cutting Machine US
Brand New V Cut Groove PCB Cutting Machine Separating Separator ST-601C UK


Specification:



Application PCB :V-CUT and S.9M.T.PCB(substrate)
Motor speed :Max 1380 / min ( adjustable )
Cutting speed : Max 0-24 meter / min (adjustable)
Max PCB cutting width :110mm
Maximum board component height : 40mm
Max V-CUT Thickness :0.6-2.0mm
Voltage :220V / 110V ,50HZ
Weight : 45kg
Size : 350 * 300 * 400 mm
Power : 40W



Introduction:



1 , In typical assemble line , high percentage of defect PCB is often created by incorrect separation of panelized PCB after reflow and this process depending on the labor skill and concentration .
2 , Fine component soldering or near edge copper trace, board mechanical structure often break or damage by the hand break off procedure of v-grove board separation . Root cause can also be marginal v-groove routing or high strength PCB material .
3 , The V-CUT machine is widely using in the industry to provide reliable way to separate small panelized v grove board , its labor independent and easy to operate . It eliminated the process error near to none and improve yield .


Machine Features:



1 ,Fine blade height can be adjusted to suit the PCB .
2 ,Separated the board via V blade instead of hand bending ,
3 , Industrial grade motor make sure the reliability of round the clock operation .
4 , Speed control can be adjusted
5 , Board guard height is adjustable .
6 , All steel construction . Accurately and Rigid
7 , one year warranty
