Product Details:
Payment & Shipping Terms:
|
| Features: | Blade Set Can Be Quickly Changed. | Blade Material: | High Speed Steel |
|---|---|---|---|
| Power Supply: | 220/110V,50HZ | Driven Mode: | Stepping / Servo Motor(optional) |
| V-cut Angel: | >40° | Machine Color: | White |
| PCB Width: | 300mm(could Be Customized) | Blade Dimension: | Linear Blade Or Circluar Blades |
| High Light: | CE PCB V Cut Machine,300mm PCB V Cut Machine,High Speed V-Cut PCB Separator |
||
V-Cut PCB Separator is an Inline PCBA Automatic Depaneling Machine used to separate printed circuit boards into individual components. It features a driven mode of either Stepping or optional Servo Motor, an air pressure of 0.5-0.8Mpa, a packaging weight of 300kgs, a Hay Cutter / Multi Cutter / V Cut PCB Separator type, and a Dimension size of 1250(1560)mm×800mm×1295mm. This machine is perfect for use in high-speed production lines and offers the best efficiency and easy-of-use for depaneling PCBs.
| Item | Detail |
|---|---|
| Blade Material | High Speed Steel |
| Features | Blade Set Can Be Quickly Changed |
| Dimension | 1250(1560)mm×800mm×1295mm |
| Cutting Speed | 300-500/s |
| Type | Hay Cutter / Multi Cutter / V Cut PCB Separator |
| V-cut Angel | >40° |
| Name | V-Cut PCB Separator |
| Power Supply | 220/110V,50HZ |
| Blades Number | Depend On PCB |
| Driven Mode | Stepping / Servo Motor(optional) |

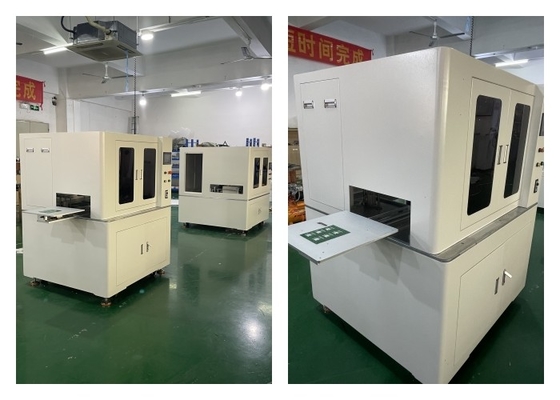

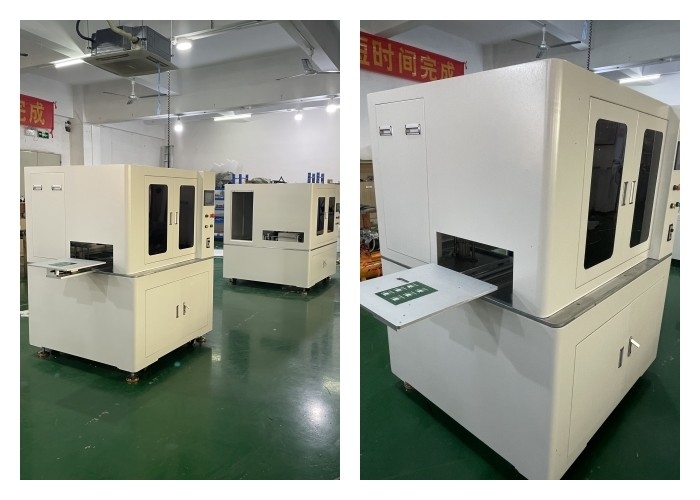

The ChuangWei CWVC-5 inline V Cut PCB Separator is an automatic depaneling machine, designed to provide a fast and cost-effective way to separate PCBs in line. It features a V-cut angle of 40°, and can handle PCBs with a maximum width of 300mm, which can be customized according to the customer's needs. The machine is equipped with high-speed steel blades, and requires an air pressure of 0.5-0.8Mpa. The number of blades depends on the size of the PCB. The CE certified machine also comes with wooden case packaging, and has a minimum order quantity of 1 set. Delivery times are 8-15 days after payment, and the supply ability is 30 sets per month. The price of the ChuangWei CWVC-5 inline V Cut PCB Separator is negotiable.
ChuangWei V-Cut PCB Separator is a professional PCB online V-cut Depaneling equipment for PCB depaneling machine, hay cutter PCB Separator.
V-Cut PCB Separator is packaged in secure, environmentally-friendly cardboard boxes with a foam insert to protect the product during transit. The product is then shipped through standard domestic and international carriers such as UPS, FedEx, and DHL.
It is important to note that the customer is responsible for all shipping and handling costs, as well as any customs or duties charges that may be incurred.
