Precision Cutting PCB Punching Machine With Max Punching Diameter 6.5mm

Name: Precision Cutting PCB Punching Machine With Max Punching Diameter 6.5mm
Brand: Chuangwei
SKU: CWPL
Price: 1.00 USD
Availability: InStock
Rating: 5 (131 reviews)

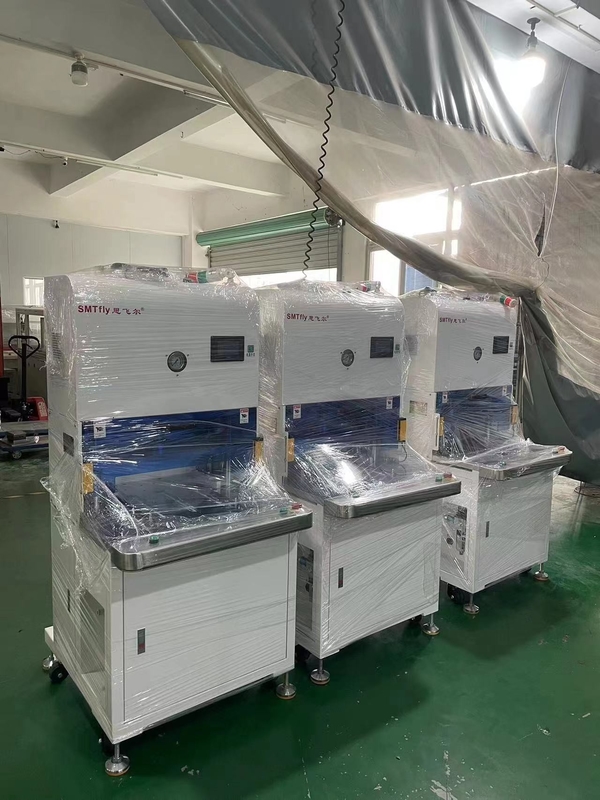

Large Image : Precision Cutting PCB Punching Machine With Max Punching Diameter 6.5mm

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE and certificate of registion
Model Number:	CWPL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywooden case
Delivery Time:	3 days after receive the payment
Payment Terms:	T/T ,Paypal ,West Union ,L/C
Supply Ability:	300 sets/ month

Contact Now

Detailed Product Description

Max. Sheet Thickness:	1.5mm	Positioning Accuracy:	±0.1mm
Repeatability Accuracy:	±0.05mm	Max. Punching Speed:	1000pcs/min
Machine Size:	1400mm1000mm1700mm	Product Name:	PCB Punching Machine
Type:	Pneumatic	Min. Pitch:	2.5mm
High Light:	Precision Cutting PCB Punching Machine , Pneumatic Type PCB Punching Machine , CE PCB Punching Machine

Product Description:

Features:

Technical Parameters:

PCB Punching Machine Technical Parameters

Product Name	PCB Punching Machine
Type	Pneumatic
Repeatability Accuracy	±0.05mm
Machine Size	1400mm1000mm1700mm
Max. Sheet Size	400mm*400mm
Max. Punching Thickness	2.5mm
Min. Pitch	2.5mm
Max. Stroke	50mm
Die	Customize
Max. Punching Speed	1000pcs/min
Max. Number of Stations	20

PCB Punch Depaneling Machine Technical Parameters

Product Name	PCB Punch Depaneling Machine
Type	Pneumatic
Repeatability Accuracy	±0.05mm
Machine Size	1400mm1000mm1700mm
Max. Sheet Size	400mm*400mm
Max. Punching Thickness	2.5mm
Min. Pitch	2.5mm
Max. Stroke	50mm
Die	Customize
Max. Punching Speed	1000pcs/min
Max. Number of Stations	20

SMT PCB Depaneling Equipment Technical Parameters

Product Name	SMT PCB Depaneling Equipment
Type	Pneumatic
Repeatability Accuracy	±0.05mm
Machine Size	1400mm1000mm1700mm
Max. Sheet Size	400mm*400mm
Max. Punching Thickness	2.5mm
Min. Pitch	2.5mm
Max. Stroke	50mm
Die	Customize
Max. Punching Speed	1000pcs/min
Max. Number of Stations	20
