Product Details:
Payment & Shipping Terms:
|
| Contribute: | 8t - 30t | Max. Sheet Size: | 400mm*400mm |
|---|---|---|---|
| Product Name: | PCB Punching Machine | Max. Punching Thickness: | 2.5mm |
| Max. Punching Speed: | 1000pcs/min | Min. Pitch: | 2.5mm |
| Max. Sheet Thickness: | 1.5mm | Max. Punching Force: | 200KN |
| High Light: | 50mm PCB Punch Depaneling Machine,CE PCB Punch Depaneling Machine,30t PCB Punch Depaneling Machine |
||

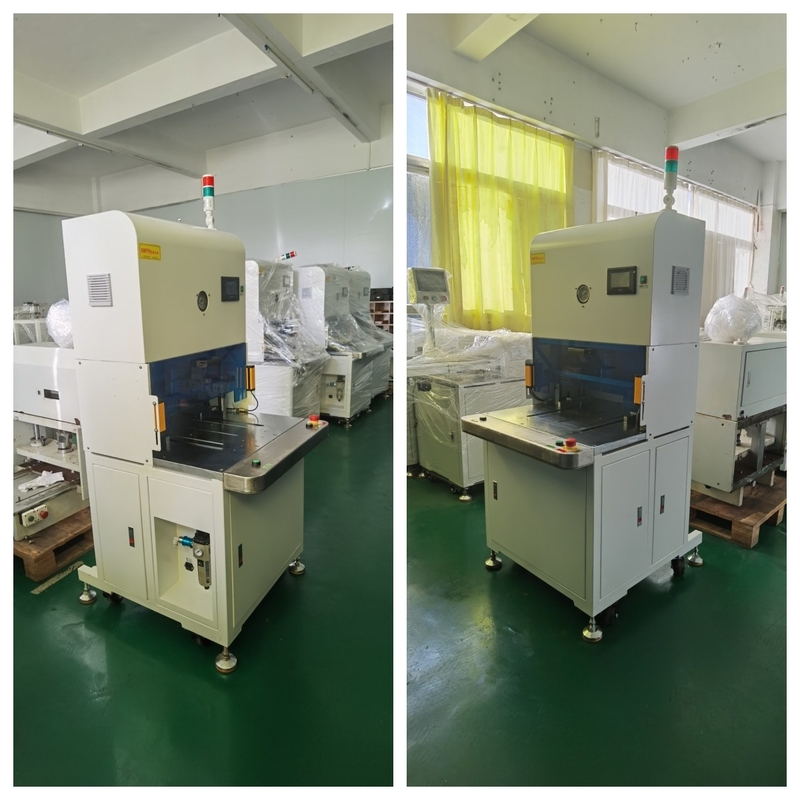

A PCB punching machine for FPC (Flexible Printed Circuit) is an indispensable tool in the electronics industry. It is specially designed to separate individual FPCs from a larger panel or an array of FPCs. By using a punching mechanism, the connection between each individual FPC is cut through materials such as polyester or polyimide film.
Compared with manual punching, this machine can offer a more precise cutting and faster production speed, since the machine is programmable to cut through a variety of board sizes and shapes. Moreover, the complexity of the shapes and patterns can also be achieved by utilizing the machine, which is difficult to be realized by manual punching. In addition, tooling changes are no longer necessary as the machine can be reprogrammed for different board sizes and shapes.
Bottom line, PCB punching machines for FPC revolutionize the work of the electronics industry, as they make FPC separation faster, more efficient and more accurate.
| Parameter | Value |
|---|---|
| Max. Sheet Size | 400mm*400mm |
| Type | Pneumatic |
| Contribute | 8t - 30t |
| Machine Size | 1400mm*1000mm*1700mm |
| Max. Punching Diameter | φ6.5mm |
| Max. Punching Force | 200KN |
| Max. Punching Thickness | 2.5mm |
| Die | Customize |
| Repeatability Accuracy | ±0.05mm |
| Weight | 1300kg |
Chuangwei's CWPL SMT PCB Depaneling Equipment is a reliable and cost-effective machine for punching out PCBs. It has a brand name of Chuangwei, the model number is CWPL, and is CE and Certificate of Registration certified. The minimum order quantity is 1 set, and the price is negotiable. It comes in a plywooden case, and delivery usually takes 3 days after receiving the payment. The payment terms are T/T, Paypal, West Union, and L/C. The supply ability is 300 sets/month, and the maximum sheet thickness is 1.5mm. The positioning accuracy is ±0.1mm, and the maximum sheet size is 400mm*400mm. The machine size is 1400mm*1000mm*1700mm, and contributes 8t-30t. The SMT PCB Depaneling Equipment from Chuangwei is easy to use, efficient, and provides the best results.
Brand Name: Chuangwei
Model Number: CWPL
Place of Origin: China
Certification: CE and certificate of registion
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T ,Paypal ,West Union ,L/C
Supply Ability: 300 sets/ month
Max. Punching Force: 200KN
Min. Pitch: 2.5mm
Machine Size: 1400mm*1000mm*1700mm
Product Name: PCB Punching Machine
Weight: 1300kg
Before shipping, we package the PCB Punching Machine in a cardboard box with foam cushioning to protect it from any damages. We use tape to seal the box to ensure it is air-tight and waterproof. Our packaging is designed to withstand the rigors of long-distance transportation.
We use different shipping carriers, depending on the size and weight of the item. We ship directly to the customer's address, or to a local pickup point. Tracking numbers are provided so the customer can track their order in real-time.
A1: The brand name of the PCB Punching Machine is Chuangwei.
A2: The model number of the PCB Punching Machine is CWPL.
A3: The PCB Punching Machine is made in China.
A4: The PCB Punching Machine has CE and certificate of registration.
A5: The minimum order quantity of the PCB Punching Machine is 1 Set.
