Product Details:
Payment & Shipping Terms:
|
| Max. Stroke: | 50mm | Max. Punching Speed: | 1000pcs/min |
|---|---|---|---|
| Max. Sheet Size: | 400mm*400mm | Positioning Accuracy: | ±0.1mm |
| Max. Punching Thickness: | 2.5mm | Product Name: | PCB Punching Machine |
| Weight: | 1300kg | Die: | Customize |
| High Light: | Customize PCB Punching Machine,0.05mm Accuracy PCB Punching Machine,CB Punching Machine AC220V |
||

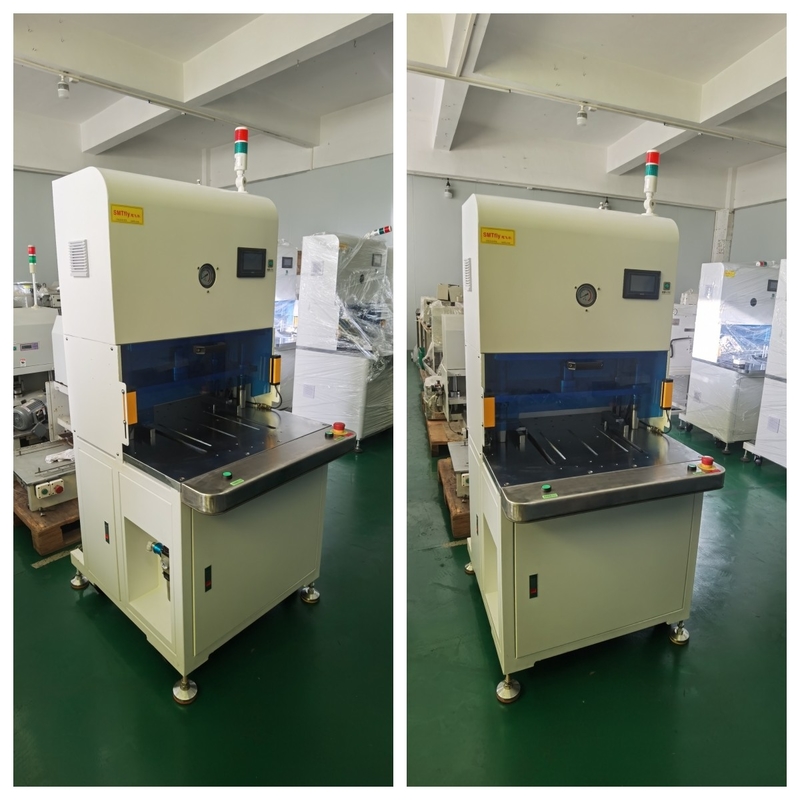

A PCB punching machine for FPC (Flexible Printed Circuit) is a specialized piece of equipment used in the electronics industry to separate individual FPCs from a larger panel or array of FPCs. The machine uses a punching mechanism to cut through the material that connects the individual FPCs, such as a thin layer of polyester or polyimide film.
The PCB punching machine for FPC can be programmed to cut the FPCs with precision and can handle a variety of different board sizes and shapes. It is typically used in high-volume production environments, where manual punching would be time-consuming and inefficient.
Using a PCB punching machine for FPC has several advantages over traditional methods. It can cut through materials more quickly and accurately, reducing the risk of damage to the FPCs. It can also be used to cut complex shapes and patterns, which is difficult to achieve with manual punching. Additionally, it eliminates the need for expensive and time-consuming tooling changes, as the machine can be reprogrammed for different board sizes and shapes.
Overall, PCB punching machines for FPC are an important tool for the electronics industry, allowing for faster, more efficient, and more accurate FPC separation.
| Product Name | PCB Punching Machine |
|---|---|
| Power Supply | AC220V/11V,50HZ |
| Max. Sheet Thickness | 1.5mm |
| Contribute | 8t - 30t |
| Max. Stroke | 50mm |
| Positioning Accuracy | ±0.1mm |
| Type | Pneumatic |
| Die | Customize |
| Max. Punching Force | 200KN |
| Min. Pitch | 2.5mm |
Brand Name: Chuangwei
Model Number: CWPL
Place of Origin: China
Certification: CE and certificate of registion
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T ,Paypal ,West Union ,L/C
Supply Ability: 300 sets/ month
Type: Pneumatic
Product Name: PCB Punching Machine
Max. Punching Diameter: φ6.5mm
Weight: 1300kg
Min. Pitch: 2.5mm
Chuangwei PCB Punch Depaneling Machine is a pneumatic type SMT PCB Depaneling Equipment with high quality and stable performance. It is CE certificated and comes with certificate of registion. It has a cutting diameter up to φ6.5mm and a minimum pitch of 2.5mm. With a weight at 1300kg, this PCB Punch Depaneling Machine is reliable and powerful for fast and accurate PCB punching and depaneling.
The PCB Punching Machine is shipped in a strong and secure package. The package is designed to ensure that the machine arrives safely and in good condition.
The package includes the following:
The package is securely sealed and labeled to prevent any damage or tampering during shipping. The package is also labelled with the appropriate shipping information.
A1: The brand name of the PCB Punching Machine is Chuangwei.
A2: The model number of the PCB Punching Machine is CWPL.
A3: The PCB Punching Machine is made in China.
A4: The PCB Punching Machine has CE and certificate of registion.
A5: The minimum order quantity for the PCB Punching Machine is 1 set.
