Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control

China Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control supplier
Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control supplier Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control supplier

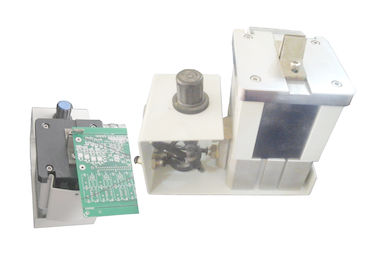

Large Image :  Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWV-LT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 2 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description



Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control



Printed Circuit Board Nibbler Machine Specifications:



Action stroke times 12 times / min
Working dry air pressure 0.50-0.70 Mpa
Slide stroke 2 mm
PCB Nibbler Machine Weight 2 kg
PCB Nibbler Machine Size 280x105x185mm



Printed Circuit Board Nibbler Machine Features:


1, all pneumatic control, easy to operate
2, suitable for slitting various PCB connection points
3, hook blade work, hook blade shape can be customized
4, convenience for replacing hook blade
5, hook blade for "T" type or "L" type blade
6, small size, does not damage the part of the PCB and PCB substrate



Safe operation with PCB nibbler CWV-LT



The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine.



"T"-Blade

TTTTTTTTTTTTTT.jpg      With the T-blade off-cuts can be punched out right and left of the blade without turning the PCB.


"L"-Blade

LLLLLLLLLLLL.jpg           The L-blade will be used if there are small distances between the off-cuts





Matrix
