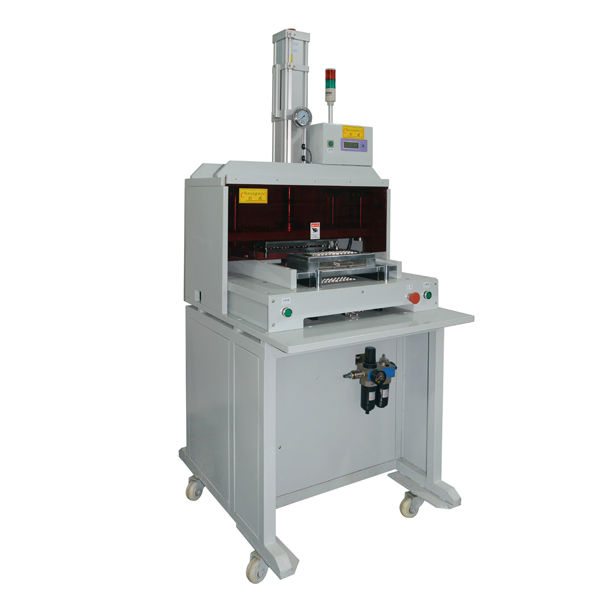

Professional Economical FPC / PCB Punching Machine with Punching Mold,PCB Separator

Professional Economical FPC / PCB Punching Machine with Punching Mold,PCB Separator
Professional Economical FPC / PCB Punching Machine with Punching Mold,PCB Separator

Large Image :  Professional Economical FPC / PCB Punching Machine with Punching Mold,PCB Separator

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: Chuangwei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWPE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 1200 sets/year
Detailed Product Description
High Light:

pcb punching machine

,

pcb depaneling machine

Professional Economical FPC / PCB Punching Machine with Punching Mold,PCB Separator
 cw logo.jpg
The most professional FPC/PCB singulation  machine manufacturers in China.

fpc/pcb singulation machine:
1,Apply to singulate Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
2,Use punching mould to singulation with more high efficiency
3.Can replace multiple mold for production and mold changing easily
4.The operation is simple and safe

fpc/pcb singulation machine specifications:

ModelCWPE
Punch Standard tonnage (Tons)3 (can custom made up to 30T)
Working area (mm)330*220 (can custom made)
Voltage(V)110/220
Working air pressure(Mpa)0.5-0.7
fpc/pcb singulation machine size (mm)730*810*1700
fpc/pcb singulation machine weight (kg)      530




fpc/pcb singulation machine features:
1.Machine has strong structure and moves easily with 4 Casters.
2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB singulating to minimize and avoid tin stress cracking.
5.punching singulation semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's requests.
**fpc/pcb singulation machine video please see below: (CWPE )**
http://www.youtube.com/watch?v=IE4A6K3xklU&feature=youtu.be
http://v.youku.com/v_show/id_XNjAzMzcxMzY4.html



***Chuangwei PCB singulation machine***
***Since 2004 ChuangWei started to development,manufacture,sale,service for PCB singulation machine, until now,we have produced different kind PCB  singulation  machine type for  manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.

***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB  singulation  machine base your actual requires.

***PCB  singulation  machine mainly applies to  singulate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
 ***Chuangwei PCB singulation machine***

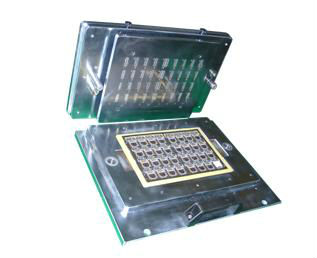

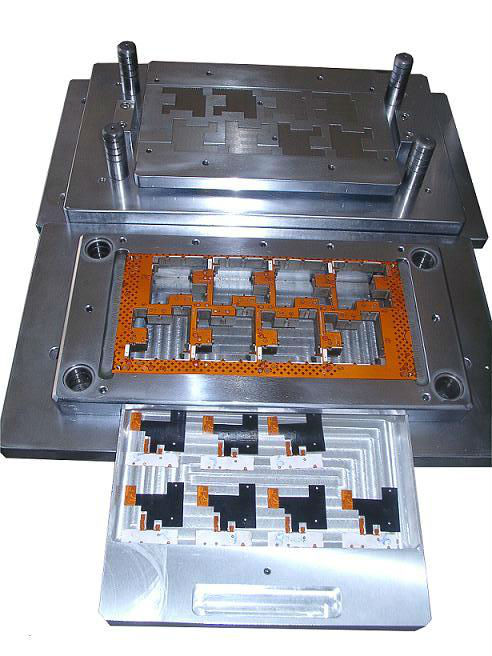

cwpe 33 pcb punching tool,pcb punching machine,punching machine for pcb,pcb punching mould.jpg

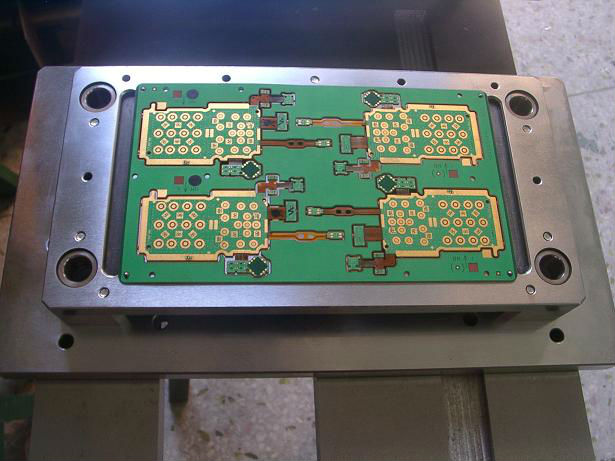

pcb punching tool,pcb punching machine,punching machine for pcb,pcb punching mould,CWPE 66.jpg

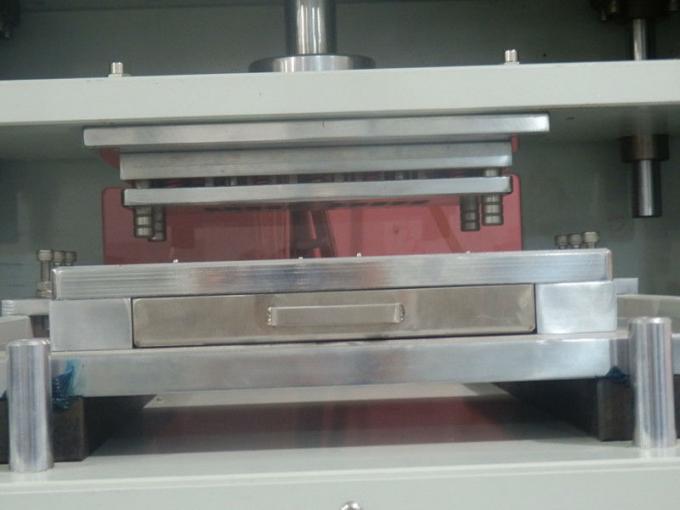

pcb punching tool,pcb punching machine,punching machine for pcb,pcb punching mould,CWPE 555.jpg

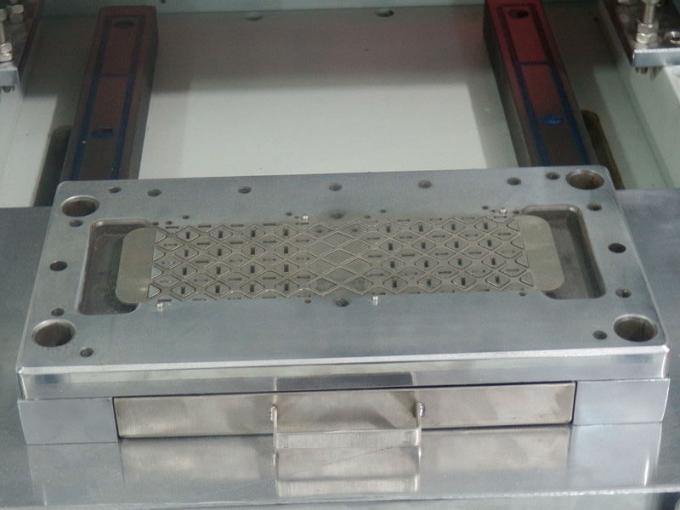

pcb punching tool,pcb punching machine,punching machine for pcb,pcb punching mould,CWPE 77655.jpg

pcb punching tool,pcb punching machine,punching machine for pcb,pcb punching mould,CWPE 22.jpg

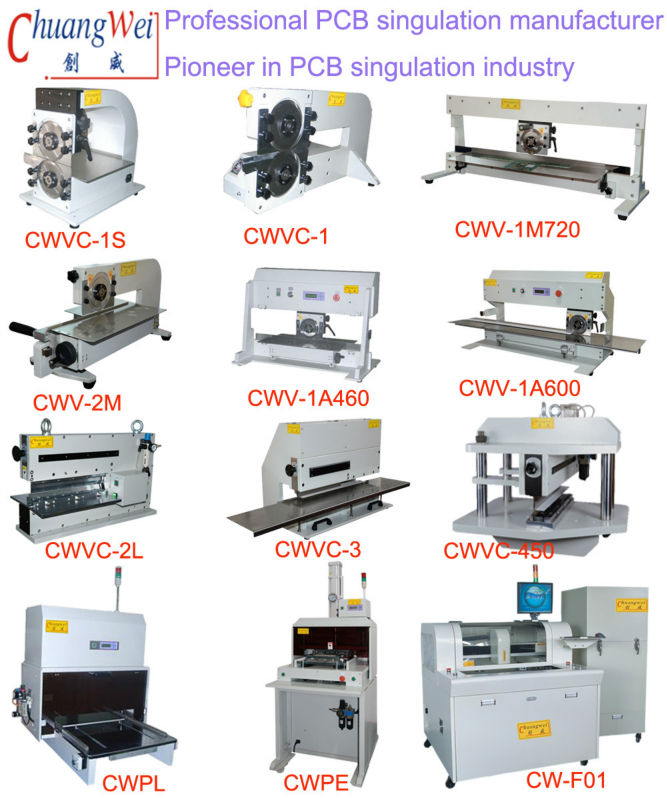

ChuangWei more related pcb singulation machine:

pcb singulation ENglish pcb separator machine,PCB depaneling machine list.jpg

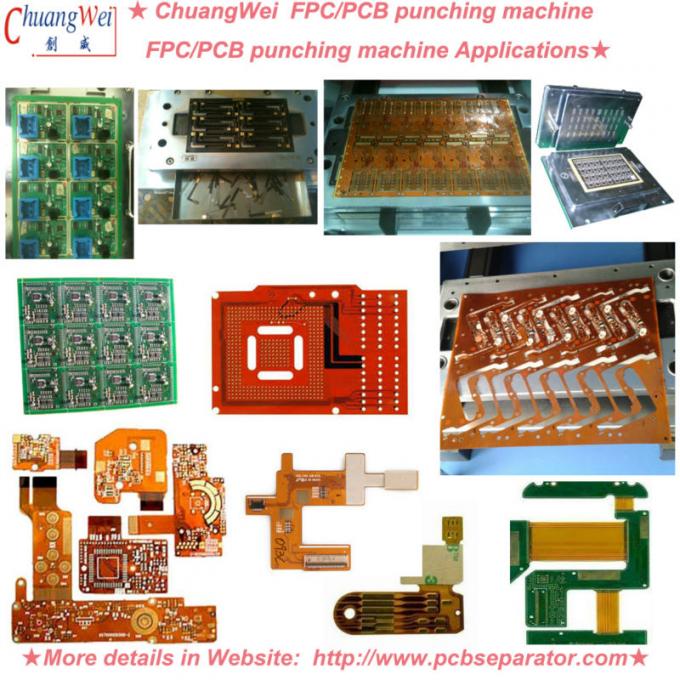

ChuangWei punching mold FPC/PCB  singulation machine /punching machines(CWPL/ CWPE) applications:
fpc,pcb punching machine use --List pro- cw pcb separator machine,PCB depaneling machine,pcb cutting machine list_.jpg

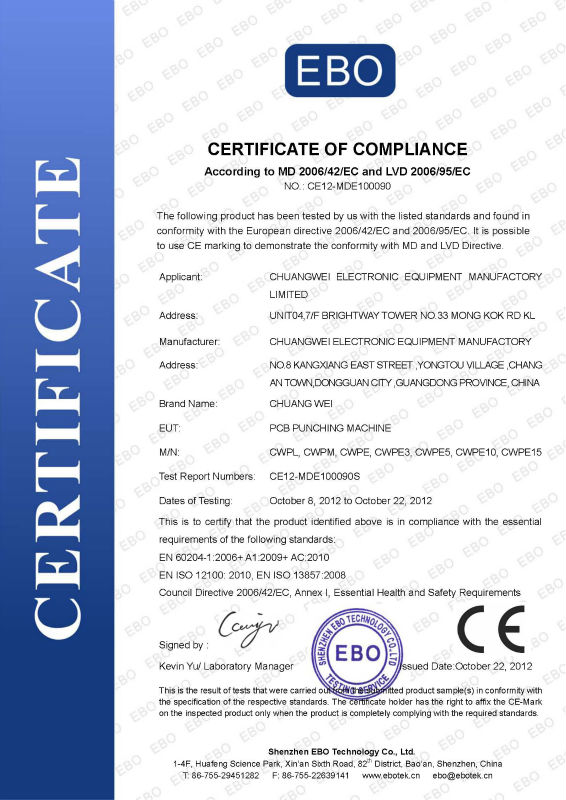

ChuangWei FPC/PCB singulation machines CE Certificate:
CERTIFICATE OF pcb punching machine-CE12-MDE100090.jpg
***Any interest please contact us freely.
***Chuangwei FPC/PCB singulation machines***
**************************************************
