Product Details:
Payment & Shipping Terms:
|
| Color: | White | Program: | Teaching Box |
|---|---|---|---|
| PCB Max Size: | 650*450mm(Could Be Customized Made) | PCB Thickness: | 0.6-3.5mm |
| Spindle: | China | Name: | PCB Router |
| Highlight: | 0.6mm Pcb Depaneling Router Machine,650*450mm Pcb Depaneling Router Machine,0.6mm pcb depaneling equipment |
||

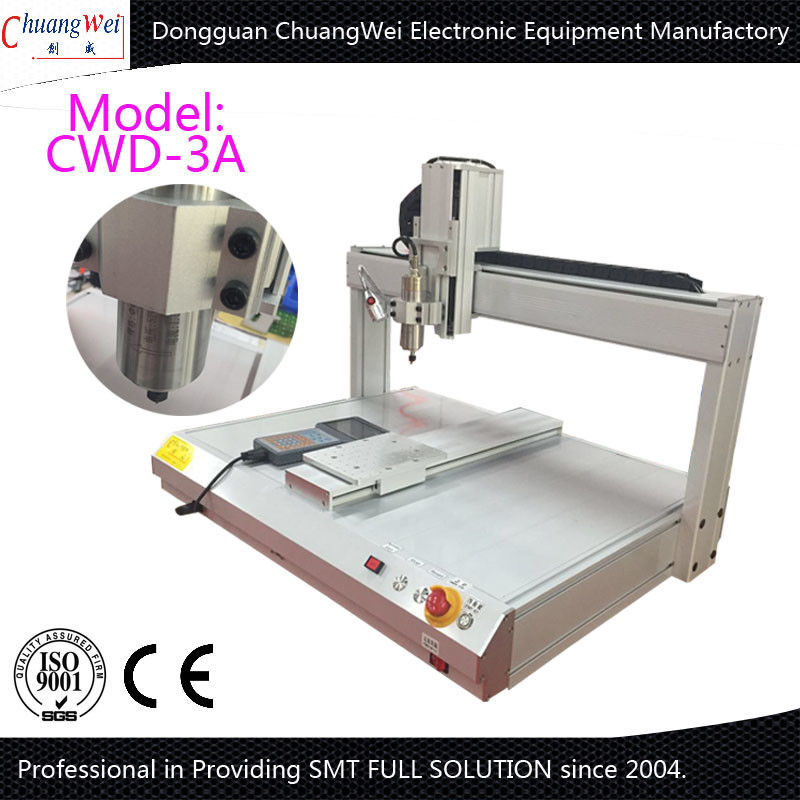

PCB Router PCB Depanelizer Desktop Easy Programming by Teaching Pedal
Specification:
Motor drive system |
Servo / stepper motor |
Spindle speed |
50000r/s |
Cutting performance |
500mm/s |
Drive system repeatability |
±0.02mm |
Cutting speed Resolution |
±0.01mm |
Configuration |
X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality) |
Repeatability |
<0.1mm |
PCB positioning fixture load/unload |
Manual |
PCB thickness |
0.4-4mm |
Working area |
650*450mm |
Spindle motor power |
0.5KW |
Spindle motor speed |
50000r/m |
Spindle motor cooling |
Air-cooled |
Machine dimension |
980*580*615mm |
Weight |
135KG |
Security settings |
emergency stop switch |
● Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
● Cut continuouslwithout interrution durinloadinand y p g g
unloading
● High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision
● Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
● Use high-quality hardware to ensure high rigidity and high performance
