Product Details:
Payment & Shipping Terms:
|
| Name: | Multi Blades V-cut PCB Separator For LED | Blades Material: | High Speed Steel |
|---|---|---|---|
| Number Of Blades: | 3-11 Sets (customized ) | Cutting Length: | Unlimited |
| Warranty: | Free For One Year | Shipping Way: | Option |
| Power Supply: | 220V/ 50HZ | Width Of PCBs: | 7-245mm |
| PCB Thickness: | 0.6-3.5mm | Component Height: | 30mm |
| Solder Side: | Max 10mm | Separation Speed: | 100-220mm/s |
| High Light: | 220mm/s PCB Separator machine,10 pairs Blade PCB Separator,220mm/s pcb depaneling machine |
||

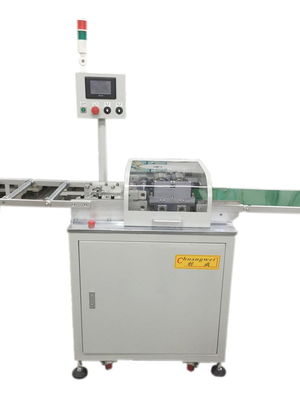

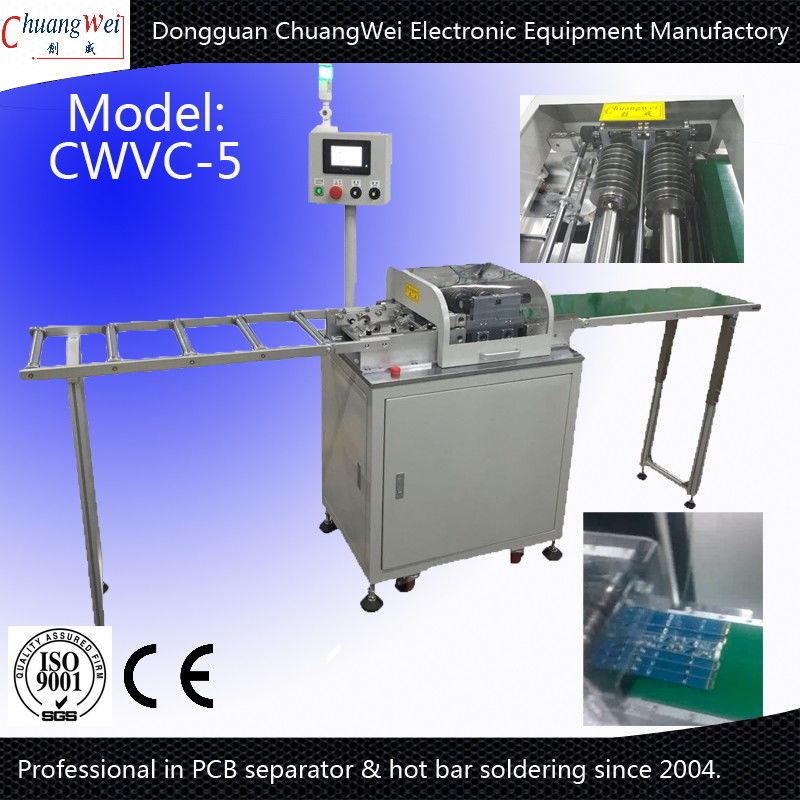

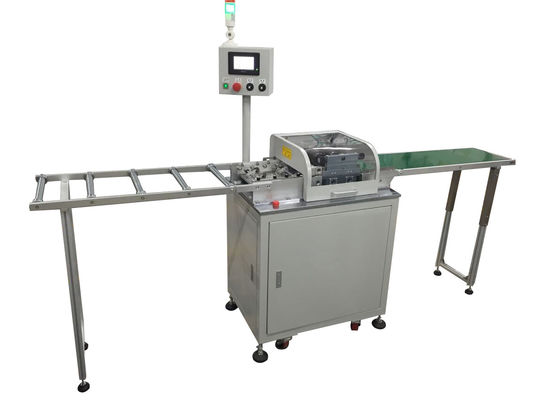

Multi-Blade Pcb Separator Cutting a Large Number of LED Board at One Time:
Features for PCB separator:

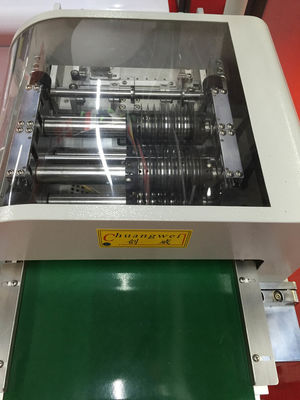

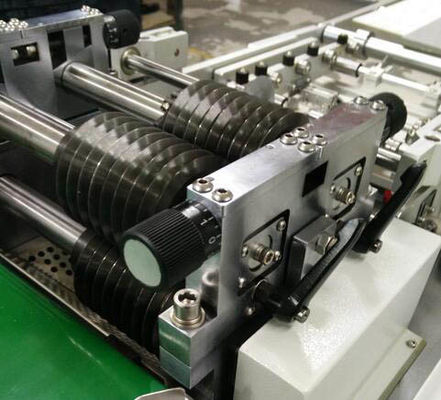

1), 10 pairs of blades are available
2), Of the blades is adjusted to individual PCB
3), Sensors are used to monitor the separating process

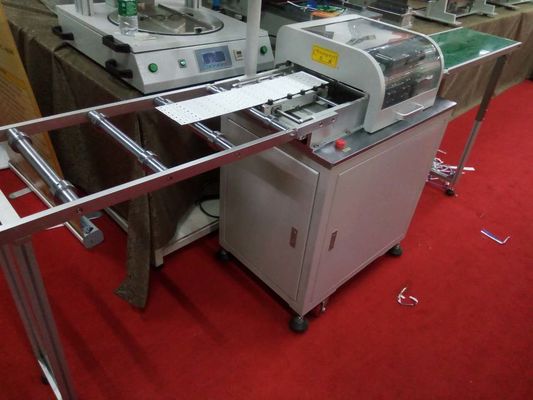

4), The PCBs are placed either by hand or they feed automatically by a loading station.
5), Easy operating
6), Could be adjusted according to PCB sizes and customers' requirements
7), Could be customized made as customers' request
Specification:
| Separation speed | 100-220mm/s |
| Panel length | Min 100mm |
| Panel width | Max 310mm |
| Number of blades | Max 11 pairs |
| Width of PCBs | 7-245mm |
| PCB thickness | 0.6-3.5mm |
| Component height | 30mm |
| Solder side | max 10mm |
