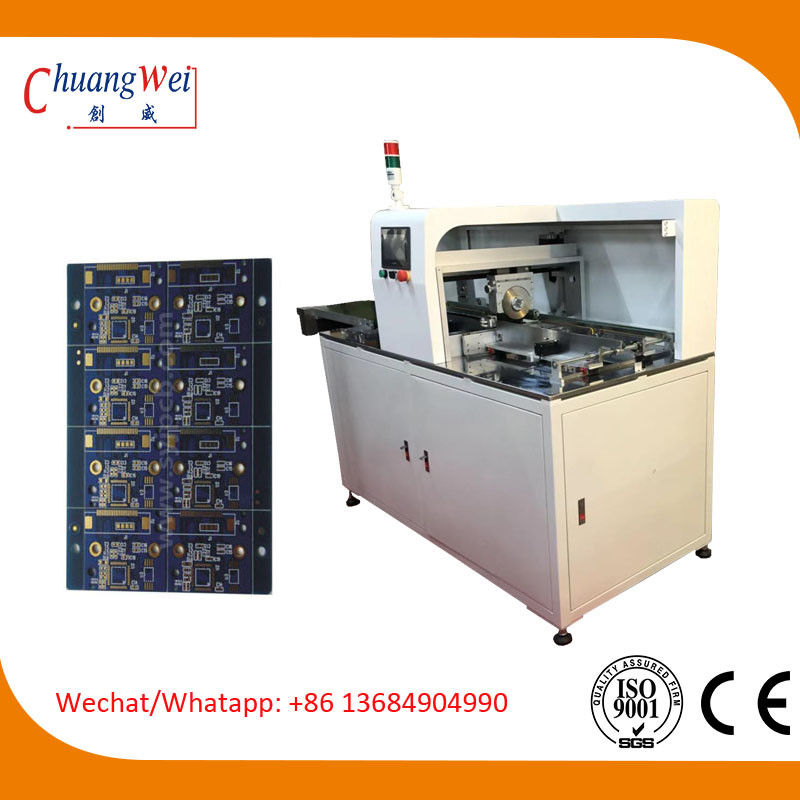

Two Steel Linear Blades Pneumatic V-Cut PCB Separator

Two  Steel Linear Blades Pneumatic V-Cut PCB Separator
Two  Steel Linear Blades Pneumatic V-Cut PCB Separator

Large Image :  Two Steel Linear Blades Pneumatic V-Cut PCB Separator

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWVC-2L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 800 sets/year
Detailed Product Description
Warranty: One Year Blade: Linear Blade
Cutting Thickness: 0.3-3.5mm Cutting Speed: Due To Operator Skill
Blade Life: 7-8months Certification: CE ISO
High Light:

Pneumatic PCB Separator

,

pcb depaneling router machine


Pneumatic V Cut Pcb Separator With Two Japan High Speed Steel Linear Blades

Customized Pneumatic V-Cut PCB Separator With Two High Speed Steel Linear Blades Vietnam

The most professional PCB shearing machine manufacturer in China.

***V CUT PCB shearing machine***

1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be sheared safely
3. Shearing process without vibrations due to pneumatic drive unit
***V CUT PCB depaneling machine specifications***



ModelCWVC-2L
Max. PCB shearing length      330mm(Can custom made)
PCB  shearing thickness0.3-3.5mm
Voltage and Power110V/220V       10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size    620*230*400mm
PCB shearing machine weight165kg


***V CUT PCB shearing machine features***
1. Pneumatically driven and electromagnetic valve control.
2. Shearing process without vibrations due to pneumatic drive unit .
3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4. Shearing operation is that operator stamps the foot pedal to shear PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between  V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
***V CUT PCB shearing machine operation video please  see below:   (CWVC-2L)***

http://www.youtube.com/watch?v=zuFZH9KcxZs
http://www.youtube.com/watch?v=PWOYDPsJiUY
http://v.youku.com/v_show/id_XNTk2NzgxNDEy.html
http://v.youku.com/v_show/id_XNTk2NzU4NzA4.html


CWVC-2L a v-cut PCB separator,PCB depaneling machine,PCB Depanelizer,PCB cutting machine.jpg
Why us


1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2. Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.


3. Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4. One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine
