Energy Saving Hot Bar Soldering Machine With Dispenser Customized

China Energy Saving Hot Bar Soldering Machine With Dispenser Customized supplier
Energy Saving Hot Bar Soldering Machine With Dispenser Customized supplier Energy Saving Hot Bar Soldering Machine With Dispenser Customized supplier

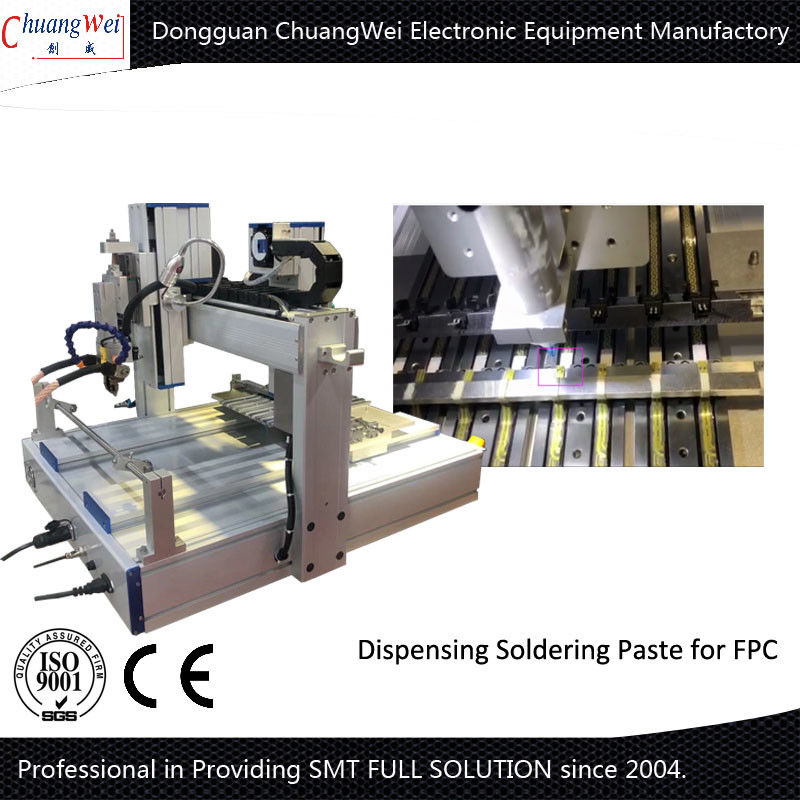

Large Image :  Energy Saving Hot Bar Soldering Machine With Dispenser Customized

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWDS-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD/RMB
Packaging Details: wooden case
Delivery Time: 15-30 working days after payment
Supply Ability: 100Set/Month
Contact Now
Detailed Product Description
Working Pressure(Mpa): 0.4-0.7 Heating Method: Pulse
Temp Setting(℃): 0-500 Temp Error(℃): ±2
Heating Power(KW): 3 Soldering Accuracy(mm): ±0.02
Heating Setting: 2 Line Heating Speed(℃/s): 200

Solder Machine with Dispenser Machine Customized with Customers Requirments Maintenance



1. The welding head is cleaned regularly every day.

2. Do not set the temperature higher to prevent soldering products

3. The welding head has a high working temperature for a long time, pay attention to prevent burns.

4. X, Y, Z guide rails regularly add butter every quarter

5. When the machine is abnormal, press the emergency stop switch until the abnormality is removed before starting the work normally.



Solder Machine with Dispenser Machine Customized with Customers Requirments Parameter:



Item Parameter
Working area(mm) 300*300
Working pressure(Mpa) 0.4-0.7
Fixture/Die(PCS) 1
Machine size(mm) 820*900*700mm
Weight(Kg) 140Kg
Max soldering area 6*160
Heating method Pulse
Temp Setting(℃) 0-500
Temp error(℃) ±2
Soldering time(s) 1-99
Heating power(KW) 3
Soldering accuracy(mm) ±0.02
Heating setting 2 line
Heating speed(℃/s) 200



Solder Machine with Dispenser Machine Customized with Customers Requirments Package:



Energy Saving Hot Bar Soldering Machine With Dispenser Customized



Energy Saving Hot Bar Soldering Machine With Dispenser Customized



Solder Machine with Dispenser Machine Customized with Customers Requirments Feature:



Applicable to different products, adjustable heating rate;

Titanium alloy indenter ensures average temperature, fast heating rate and long service life;

The indenter is horizontally adjustable to ensure that the components are flattened;

Imported temperature controller, precise and stable;

Small size, using front and rear double station mode to improve work efficiency;

Servo motor drive replaces traditional cylinder structure with high precision and better stability.
