Customized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch Machine

China Customized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch Machine supplier
Customized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch Machine supplier Customized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch Machine supplier

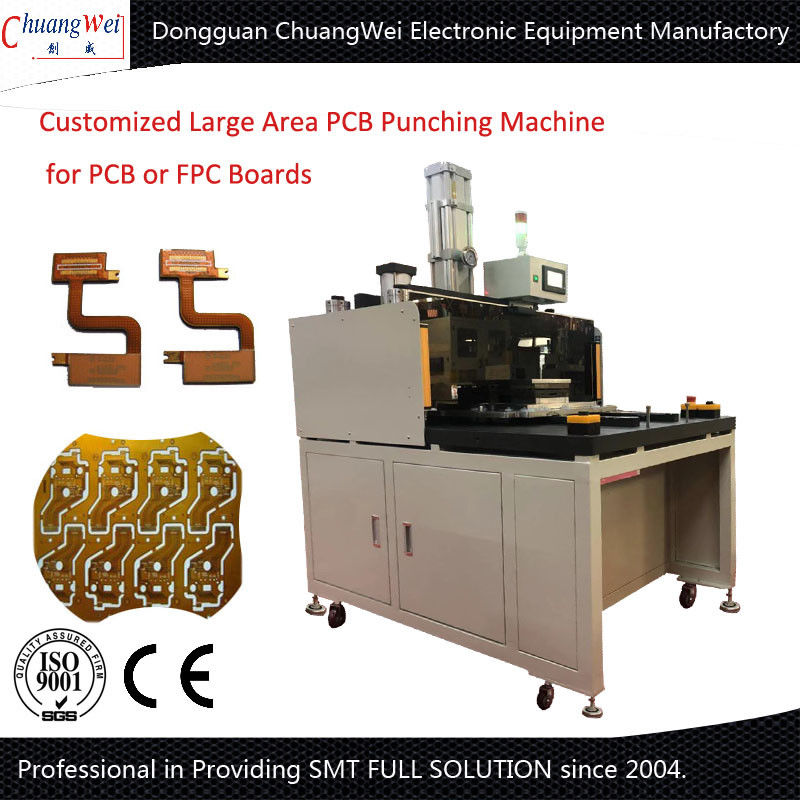

Large Image :  Customized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch Machine

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWPL

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD/Set
Packaging Details: woden case
Delivery Time: 20-30 Working days after payment
Supply Ability: 100Sets/year
Contact Now
Detailed Product Description
Working Area(mm): 640*640mm(Customized) Working Pressure(Mpa): 0.4-0.7
Machine Size(mm): 1400*1000*1850mm Weight(Kg): 1800KG
Output Pressure(T): 8 Input Voltage (V/HZ): 230/50(Optional)
Color: White Language: English

Customized PCB Punching Equipment for LED Panel Boards,FR4 Boards Punch Machine Parameter :

Item Parameter
Working area(mm) 640*640
Working pressure(Mpa) 0.4-0.7
Fixture/Die(PCS) 1
Machine size(mm) 1400*1000*1850
Weight(Kg) 1800Kg
Output pressure(T) 8



Customized PCB Punching Equipment for LED Panel Boards,FR4 Boards Punch Machine Features:

This punching machine is specially designed for cutting and punching of all
kinds of panels with molds, such as FPC and PCB hard board. It can avoid all
the problems caused by manual pulling, folding, pliers, shearing, and so on.
Flash and other undesirable phenomena.
According to different products or die toolings, arbitrarily adjust the punching
speed, punching pressure and punching time.
Easy to replace die toolings, touch screen has die tooling replacement
password to ensure safety production.
Vertical movement of lower mold for easy loading and unloading panel
Using two-hand buttons synchronization (1 second) to control, to eliminate
human security risks
Use clean gas, no oil, low power, energy saving, easy maintenance, speed and
output stability.
Automatic or manual mode is optional, computer counting and program
combination, the same day output and total output record at the same time,
convenient statistics, and the quasi-quasi-and efficient.(Automatic:this
function is only used for testing machine, not used for production)
Pneumatic technology, an air compressor can work for more than one punch,
normal use and post-maintenance costs lower than other types of punching
machine.
Has stop working and alarm function due to air pressure issue, to ensure
adequate power& quality.
Customized PCB Punching Equipment for LED Panel Boards,FR4 Boards Punch Machine Maintenance

1. The die cutting die is cleaned regularly every day,and keep the machine clean.
2. The screw guide rail is regularly lubricated and maintained every month.
3. The gas tank inside the machine is drained regularly every month.
4. When the machine is abnormal, press the emergency stop switch until the
abnormality is removed before starting the work normally.
5.Check the screws regularly for looseness. Lock the screws according to the
marked position



Customized PCB Punching Equipment for LED Panel Boards,FR4 Boards Punch Machine Size:

Customized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch MachineCustomized PCB Punching Equipment For LED Panel Boards , FR4 Boards Punch Machine
