Automated Optical Inspection AOI Equipment for PCB Assembly with High Efficiency

China Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency supplier
Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency supplier Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency supplier

Large Image :  Automated Optical Inspection AOI Equipment for PCB Assembly with High Efficiency

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-Z1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Contact Now
Detailed Product Description
Color: White Weight: 90kgs
PCB Size: 300*330mm Name: AOI

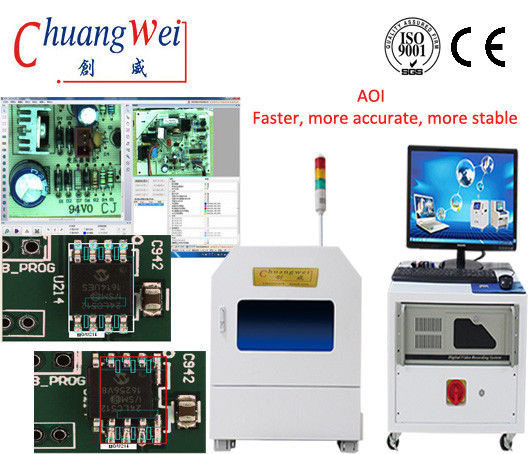

Automated Optical Inspection (AOI) for PCB Assembly with High Efficiency Faster,More Accurate,Stabler



Easy to operate and multiple-function AOI

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality,

check component defects before reflow soldering, check PCBA quality after reflow soldering,

and DIP after wave soldering.



1.High Speed industrial cameras &High resolution lens



Using 10 million pixels (optional 15 million pixels) high-speed industrial cameras and high-resolution industrial lens, to ensure the efficiency and effectiveness of image acquisition.



2. Graphic programming

Graphic programming, easy to programming



Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency      Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency



3. Visual debugging 4. SPC Analysis



Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency   Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency



5. PRODUCTS



NG display interface External bar code recognition system

NG display interface is easy to identify, external bar code recognition system can identify the 1D & 2D bar code automatically.

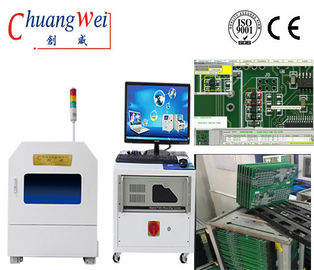

6.The equipment is directly placed on the production line

The AOI machine automatic inspecting when the PCB pass through



The equipment is directly placed on the production line, the AOI machine automatic inspecting when the PCB pass through, no need stop the PCB and fixed position, no need adjust the speed of the production line.



Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency   Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency



7. Recognize the polarity automatically  8.Color extract algorithm



Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency    Automated Optical Inspection AOI Equipment  for PCB Assembly with High Efficiency



Features:

  1. 10Megapixels (15MP for option) high speed Industrial camera & high resolution lens
  2. Graphic programming,easy to programming
  3. There is a bar code reader inside,every products are storied with the bar code information,the inspection products are traceable.
  4. Have SPC software.
  5. Real time monitoring of production line, no need stop when inspection, the inspection is finished when the board passing,
  6. All production line equipment can be centralized management through the central server,also can collect all the test data and information of the production line, convenient for management.
  7. The machine can automatically recognize the board without barcode and automatic inspect.

Specification:



Category Item Specification
Recognition system Inspection The VCTA-Z1 using multiple algorithms synthetically such as WIDM,Color Image contrast technology,Color extracting technology, similarity, two-value handling technology and other algorithms
Camera The color industrial camera(10M) made in Germany
Lens Industrial lens made in Japan
FOV/Cycle time The FOV needs to be adjusted according to the actual situation. Cycle time <3S
Lamp-house White LED Lamp-house
Inspection Items Dip component wrong,missing,shift,reversed polarity(have distinct polarity on the top side)
Bar code Reader Fixed bar code recognize system, accurate identification of 1D & 2D bar code
Soft system Operation System Microsoft Windows 7
Operation Graphic programming, take along with chip library and get an inspection frame according with chip shape, aureate position,, and easy programming
SPC SPC report can be generated; the report can be output in Excel format
Controller Computer Industrial computer, Intel dual Core 2, 4G MEMORY:, 500G HARDDISK
Display 23 inch TFT
Power Supply AC220V±10%, single phase 5A 50/60HZ, power consumption 300W
Working Environment Temperature10-40℃, humidity 30-80% RH
Others Dimensions 750(L)*670(W)*1000(H)
Weight 90KG
