BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology

China BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology supplier
BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology supplier BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology supplier BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology supplier

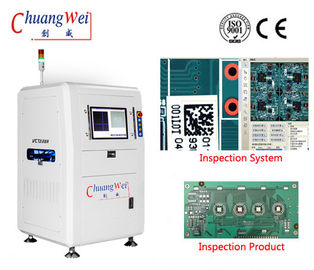

Large Image :  BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-Z588

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Contact Now
Detailed Product Description
Color: White Weight: 850kgs
PCB Size: 510*460mm Name: AOI Machine

BGA Inspection AOI Machine Color Image Contrast Technology


Category Item CW-Z588 CW-Z588L





















Recognition System

Inspection Using multiple algorithm synthetically such as WIDM, Color Image contrast technology, Color extracting technology, similarity, two-value handling technology, OCR/OCV, Solder ball inspection, PTH analysis and so on.
Camera

Distal and high speed color CCD camera: 20 um

(15um,12um,10um for option)

Lamp-house 4 Rings RGBB LED lamp-house,with special coaxial optical for option.
FOV 40.96mm×40.96mm (20um)30.7mm*30.7mm (15um)
Image Processing Speed 0201 Chip <7.6ms
Per-image Time <220ms(20um)

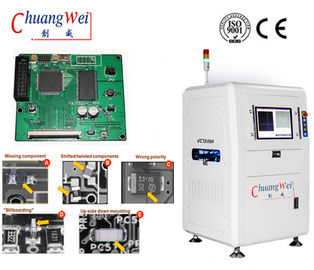

Inspection Item Paste Printing Defects Misaligned, overflow, insufficient, pasting open, stain
Components Defects Missing, shift, skewed, tombstone,billboard, overturned,reversed polarity, wrong, damage
Solder Defects Overflow, insufficient, short solder, stain
Wave Solder Inspect Overflow, insufficient, short solder, excess solder, solder void





















Mechanism System

PCB conveyor Left to right(Optional, right to left)PCB fixing: bottom-up, PCB warp correction.Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard.Orbit clearance: 900±20mm
PCB sizes 50×50mm-400×330mm 50×50mm-510×460mmcan make bigger size according to clients’ demands
PCB Thickness 0.3mm – 3.0mm
PCB Warp tolerance <2mm
Component clearance TOP<50mm,BOP<75mm
X,Y platform & Z axis Driver AC server, camera moves in the directions of X/Y
Orientation <10um
Moving Speed 500mm/s
Operation System Microsoft Windows 7*64
Controlling & Recognizing Characteristics Set template images real time, count data and error gate value automatically. Three marks correction, ,input CAD date locate the templates automatically,the operator can combine algorithms according to the requirement.
Operation Graphic programming, Chinese, English
Offline Programming Offline programming and Offline debugging
Controller Computer CPU:Intel dual-core, Memory:16G, Harddisk:1TB
Display 19 inch TFT 22 inch TFT
Multi Machine Control The operator can control multi same machines in the control terminal





Others

Machine Dimensions(L*W*H) 96cm×100cm×158cm 104cm×110cm×158cm
Weight 710KG 850KG
Power Supply AC220V, 10%, single phase 5A 50/60HZ, power consumption 1000W with UPS inside
Working Environment Temperature10-40℃, humidity 30-80% RH



Feature:



1,The new structure design is accord with human body engineering.

2,The software supports the database control, can emote programming and the debugging, and carries on the data collection and the analysis.

3,The software support for offline programming and off-line debugging.

4,Single box multi algorithm combination, the programming interface more concise and clear.

5,The AOI machine can interact directly with NG BUFFER and other machines through the specific communication protocol.

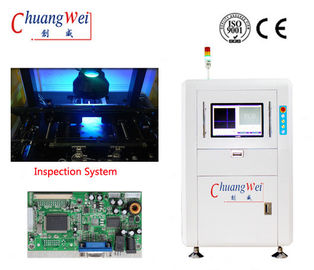

New Light Source Design



BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology



The Z588 adopts multi angle Light source design , through different angles of illuminationto sampling the details of the characteristics of the object to be detected, accurately obtain theassembly and welding information posted element,detected the NG accurately.



Solder Ball Inspection Function



BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology  BGA Inspection AOI Automated Optical Inspection Equipment Color Image Contrast Technology



Through the surface color, brightness,solder ballshape and color feature to inspect if there is anysolder ball on the PCB. The machine can inspectthe solder ball surround the component,

also caninspect the whole PCB through the inspectionframe.



BGA Inspection Function



This function used before mounting toinspect if there are insufficient solder,missing ball, solder bridge and so on.
