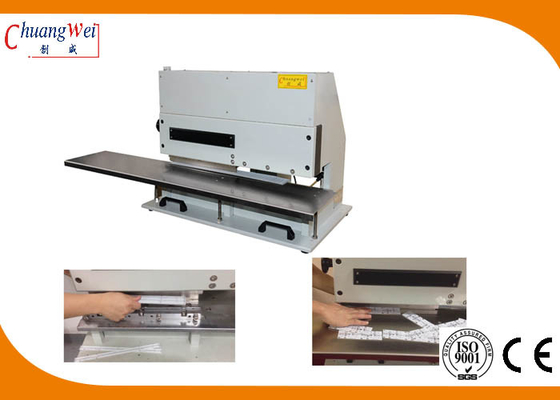

V-cut Pcb Separator Separation Pre-scored PCB without Microstress

V-cut Pcb Separator Separation Pre-scored PCB without Microstress
V-cut Pcb Separator Separation Pre-scored PCB without Microstress V-cut Pcb Separator Separation Pre-scored PCB without Microstress

Large Image :  V-cut Pcb Separator Separation Pre-scored PCB without Microstress

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separator
Certification: CE and GMC
Model Number: CWVC-3 pcb separator

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: within 3 days after receive the payment
Payment Terms: T/T, paypal, cash,credit card
Supply Ability: 1000 sets / year
Detailed Product Description
Cutting Length: Unlimited Name: V-cut Pcb Separator
MOQ: 1 Set Material: High Speed Steel
Package Details: Plywooden Case Shipping Way: EXW / FOB
High Light:

PCB depaneling

,

PCB Cutting Shear

V-cut Pcb Separator Separation Pre-scored PCB Without Microstress​Specifications:

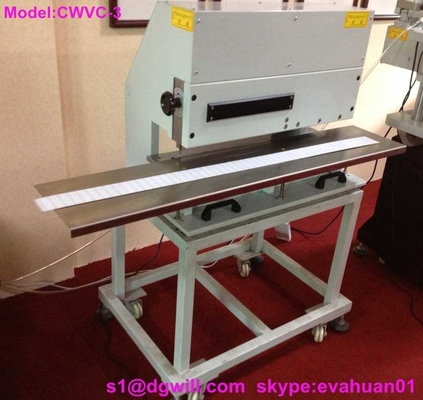

Model CWVC - 3
Max. PCB separation length unlimited
PCB cutting thickness 0.3 - 3.5mm
Voltage and Power 110V / 220V --  10W
Working air pressure 0.5 - 0.7 Mpa
PCB depaneling speed due to operator skilled level
PCB separator machine size 780 x 500 x 620 mm
PCB separator machine weight 185Kg



Features:


1. Separates boards up to 2.0 mm thick (with minimum 0.5 mm scoring depth)
2 . Can be used with aluminum, FR4, CEM3 and other substrates, including substrates with metal inner layers
3 . Separates PCBs with components located up to 0.5 mm from the score line
4 . Safe for use with flexible and thin PCBs
5 . Smooth, quiet pneumatic-powered unit with foot-pedal activation
6 . Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
7 . Boards are separated without bending or breaking
8 . No safety risks to operator since there is never a gap greater than 4 mm between the upper and lower blades
9 . Adjust blades to PCB score line using rotary knob

Video



http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be    (For 1.2 meter aluminium PCB  CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html

Chuangwei PCB depaneling machine



From 2004 we started to development,manufacture , sale , service for PCB depaneling machine , until now , we have produced different kind PCB depaneling machine type for manual , motor-driven , pneumatic-driven , mold and die punching,milling cutter router etc .

You can depend on your company's condition and choose the most suitable one .

Also We can manufacture PCB depaneling machine base your actual requires .

PCB depaneling machine mainly applies to depanel various shape , length and thickness Printed Circuit Board(PCB) which include Rigid PCB , Flexible PCB(FPC) and Rigid-flex PCB etc . For example electronic and digital products FR4 PCB , FR6 PCB , Aluminium PCB , Copper PCB , LED strips , LED tubes PCB , Solar energy PCB and different FPC etc .



Any interest please contact us freely .
