|Life Cycle:||20000 Times||Colour:||Blue/ Black/ Grey|
|Maximum Operation Temperature(C):||350||Sheet Size(mm):||2440×1220|

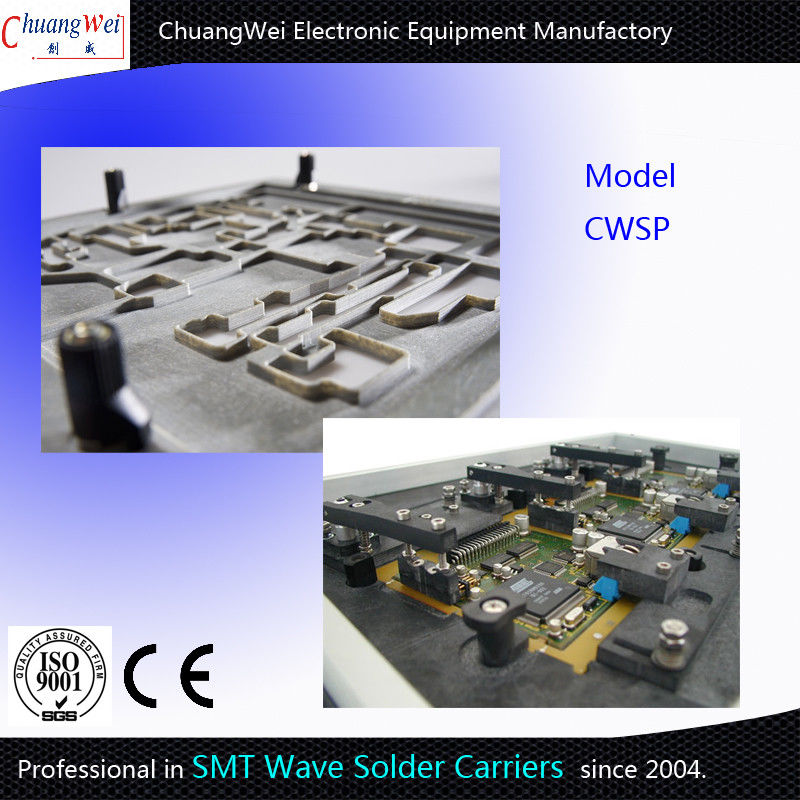

Selective PCB Pallet Matrix Trays Wave Soldering Pallets 1.85g / Mm3
We recommend to use Reflow Pallets of Durostone Material, for your different PCB shapes, thin PCB material use to avoid warpages on your assembled board. You will be able to work effective with every kind of shapes and material thicknesses.
The following are the general data files required for fixture development. Products are processed differently. Supplying us with all of this data will ensure that we have what is needed for your application.
Top & Bottom Side Silkscreen
Top & Bottom Side Paste
Top & Bottom Side Mask
Drill Fab Layer
Height of components on the solder side of the PCB
Height of components requiring hold downs
Identify any components which overhang the board and whether they seat flush to the top of the PCB or receed to a certain depth
|Maximum Operation Temperature(C)||350||350||350|
|Tickness/weight(mm/kg)||3/17, 4/22||5/28, 6/33, 8/44||10/55, 12/66|
TOP SIDE STANDARD FEATURES
Chuangwei’s standard PCB hold down is our low profile. It is unbreakable, ESD safe and guaranteed for the life of the pallet. The non-marring design applies 12 pounds of downward pressure without having to lift. Just twist! We also offer a high profile hold down, cam-lock and custom hold downs for connectors.
Chuangwei does not ‘tap’ the composite, we use all “metal to metal” fasteners ensuring a reliable and long lasting fixture.
We offer two sizes of extruded aluminum stiffeners and solder dams; for smaller pallets we have a 3/8” tall and for larger pallets we have a 3/4” tall design.
All pallets are engraved with the board name and our work order number for handy reference. All data associated with your pallet is stored to that work order number.
BOTTOM SIDE STANDARD FEATURES
All bottom side fasteners are made from 316 grade stainless steel. This eliminates solder sticking or wetting to the fastener.
All fasteners are thread locked.
Our goal is to design and build a solution that will give you:
1. Highest yields with the largest process window possible.
2. Easy to use tooling that will survive your manufacturing environment.
3. Fastest delivery times possible.
(1) Discount price yes&no ?
It is depending on the volume. The larger the volume is, the more discount you can
(2) Why your price is a bit higher than other Chinese suppliers?
To meet the requirement of different customers and areas, our factory manufactures
various kinds of quality for each item at a wide range of price. We can offer the
products of different quality levels depending on customer’s target price and quality
(3) If I can get a sample ?
For existing samples (sizes not larger than 300*300mm) can be sent free of charge
but you just need to bear shipping charge, or you can provide your DHL, FEDEX,
EMS, UPS courier account number to us.
For bigger sizes, or customized samples, it depends on negotiation.
(4) If you can guarantee the quality of mass production is same
as the sample sent to me before?
Quality is our culture, is our life. We believe our products will give you a surprise.
Our warehouse staff will leave another same sample in our workhouse, and marked
your company name on it, which our production will be based on.
(5) How can you deal with quality issues after receiving the goods?
1) First you take photos of unqualified goods and then our sales staff will send
them to Manufacturing Department to verify.
2) If the problem is confirmed, our sales will explain the root cause and take
corrective actions in coming orders.
3) Finally, we will negotiate with you to make some compensation.
