Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform

Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform
Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform

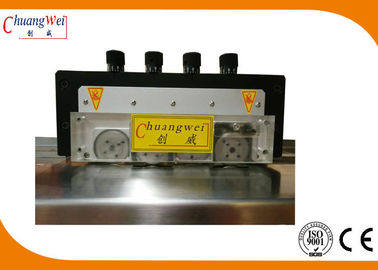

Large Image :  Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separator
Certification: CE GMC
Model Number: CWVC-4S pcb separator

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 - 5 days after receive the payment
Supply Ability: 1000 sets per year
Detailed Product Description
Separation Length: Unlimited Packaging Detail: Plywood Case
Delivery Detail: Within 3 Days After Confirm The Payment Material: High Speed Steel
Plateform: 1.2 / 2.4m ( Option ) Cutting: 2 Pcs One Time
Name: PCB Separator Machine Color: White
High Light:

PCB depaneling

,

PCB separators



Pre Scoring PCB Separator Machine For LED Lighting MCPCB Strip Panel​ Specification :


Max PCB width: 12mm

Platform : 1.5 M /2.4 M length
Machine Size : 40*40*34 cm
The Longest Minimize : No limited
Minimize Speed : 0-520mm/s
Minimize thickness : 1.0-3.5mm
Machine Weight : 70Kg

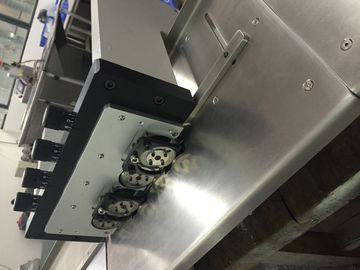

Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform 0



Feature:


1. Guide can be adjusted vertically to suit different LED board.
2. Clearance between the circular blades can be precisely adjusted by the knob
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to customer's specifications .
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect

7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)



CE Approval

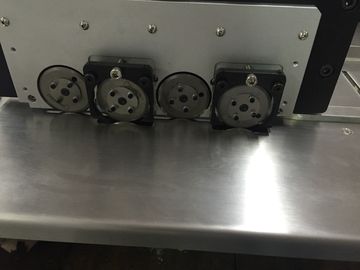

Pre-scoring PCB Separator Machine,2.4M Stainless Steel Platform 1
