Product Details:
Payment & Shipping Terms:
|
| Separating Thickness: | 0.6-3.5mm | Separating Length: | 600mm (customize) |
|---|---|---|---|
| Warranty: | One Year Free | Blade: | Circular And Linear |
| Type: | Automatic | Power: | 110/220V |
| High Light: | pcb depanelization,pcb depaneling machine |
||

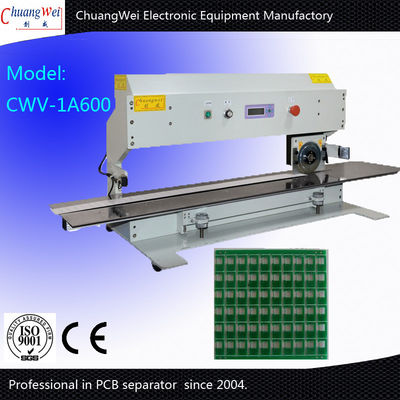

PCB Separator Machine For Automotive Electronics Industry With Safe Sensor
Specifications:
|
Model: |
CWV-1A |
|
Size: |
780 X 460X 560mm |
|
Machine Weight: |
55Kg |
|
Minimize thickness: |
0.6-3.5mm |
|
Minimize Speed: |
100/200/300/500mm/s |
|
The Longest Minimize: |
460mm |
Feature
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Competitive Advantage:
1. CWV-1A Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
About us
|
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry. |
|
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. |
|
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China |
|
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
|
|
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry. |
Our production flow
Contact Person: Mr. Alan
Tel: 86-13922521978
Fax: 86-769-82784046
