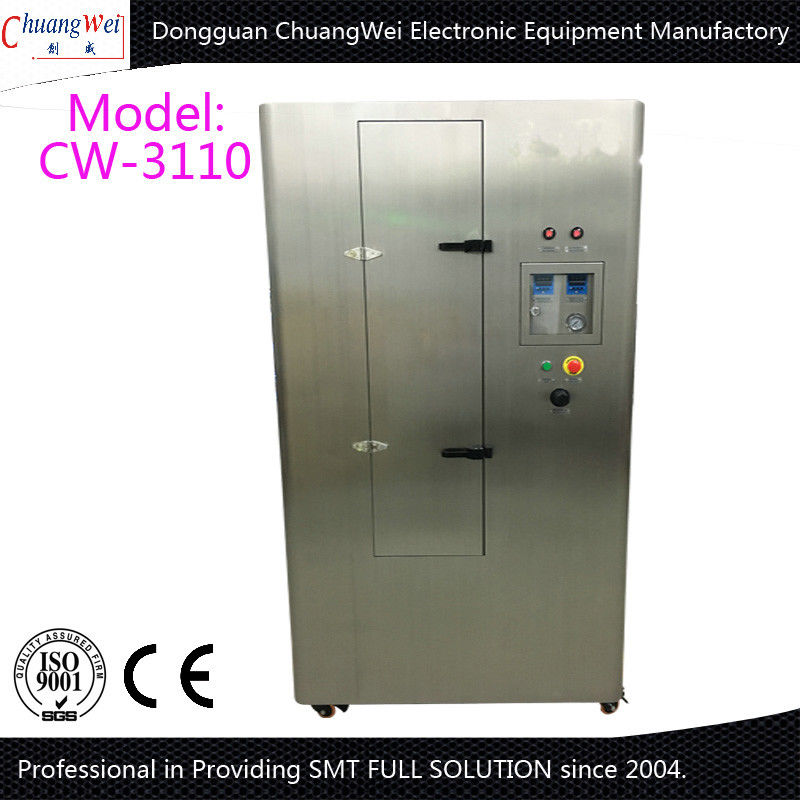

SMT Pneumatic Stencil Washing Machine for Large Stencil 1200*1200mm

SMT Pneumatic Stencil Washing Machine for Large Stencil 1200*1200mm
SMT Pneumatic Stencil Washing Machine for Large Stencil 1200*1200mm

Large Image :  SMT Pneumatic Stencil Washing Machine for Large Stencil 1200*1200mm

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-3110

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Detailed Product Description
Max Stencil Size: 1200*1200*40mm Liquid: 82L
Filter System: 3 Levels Name: Stencil Washing Machine
High Light:

pallet washer machines

,

pcb cleaning system



SMT Pneumatic Stencil Washing Machine for Large Stencil 1200*1200mm



Machine description:

CW-3110 is a large pneumatic stencil washing machine, suitable for cleaning large stencil with 1200x1200mm size. The use of water-based cleaning fluid, a significant reduction in the use of cleaning liquid. Our specially designed liquid circulation line and a new point of spray rod jet rotation mechanism, resulting in a stable cleaning spray force, completely solve the problem of large-size cleaning difficulty.



Machine Feature:

1. All SUS304 stainless steel structure, beautiful and durable, acid and alkali corrosion, 10 years life time.
2. Completely use compressed air as power, no electricity, use 100% safe.
3. One-button mode of operation, equipped with automatic drainage function, easy to use.
4. Special liquid circulation line and jet rotation mechanism, to ensure clean large-size stencil cleaning.
5. Full coverage, the maximum cleaning 1200x1200mm size stencil.
6. Interlocked safety door design, open the door to stop, to ensure safety.
7. Aggregate the world's leading brand parts, to ensure long-term stable use of the machine.
8. Modular design, maintenance and easy maintenance.



Machine Specification:

Item Parameter
Max stencil size 1200*1200*40(mm)
Chemical tank 82L
Wash time 2-6min
Resin time 3-8min
Air supply 0.5-0.7Mpa
Air consumption 600-1000L/min
Filter system 20/5/1um(3 levels)
Clean type 360°rotate jet clean+compressed air blow dry
Machine weight 400kgs
Machine size 1550mm(L) x 1100mm(W) x 2050mm(H)



Machine Package:

SMT Pneumatic Stencil Washing Machine for Large Stencil 1200*1200mm 0
