SMT Stencil Cleaning Machine Accept Max Stencil Size 750*750*40mm

China SMT Stencil Cleaning Machine Accept Max Stencil Size 750*750*40mm supplier

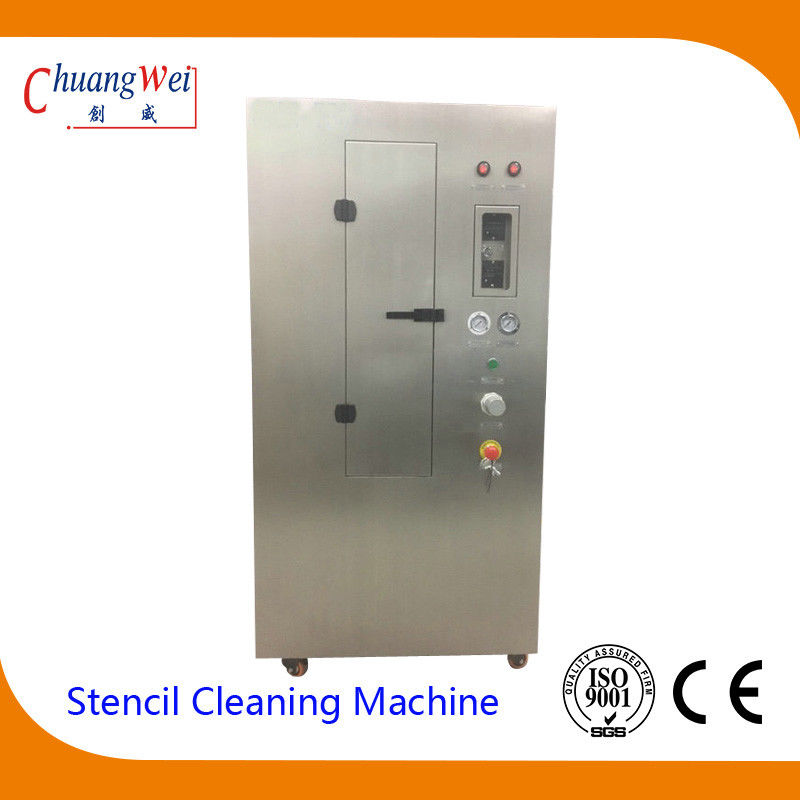

Large Image :  SMT Stencil Cleaning Machine Accept Max Stencil Size 750*750*40mm

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Max Stencil Size: 750*750*40mm Liquid: 20-40L
Air Consumption: 200-600L/min Name: Stencil Cleaning Machine

SMT Stencil Cleaning Machine Accept Max Stencil Size 750*750*40mm


Machine description:

CW-750 pneumatic stencil cleaner is designed for solder paste and red glue printing stencil cleaning of SMT process. Driven by compredded air, constructed by super parts of pneumatic industry and our good manufacturing processing, we guarantee an efficient, reliable cleaning machine and high quality cleaning result. By “One button” easy operation, the machine complete “clean+dry” process automatically. Special designed pipe and patent rotation pod system guarantee stable jet pressure on stencil.


Machine Feature:

  1. SUS304 machine structure, acid and alkali corrossion resistance, 10 years life time
  2. Totally driven by compressed air, no electric power, totally no fire or explosion risk caused by electrical spark
  3. One button easy operation, clean and dry complete automatically
  4. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension
  5. Equipped auto liquid fill in and drain function
  6. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety
  7. 3 level precise filtering system to make liquid clean by recycled used.
  8. Super well-know pneumatic parts from all over the word ensure stable using of the machine
  9. Modular design, easy maintenance
  10. Liquid recycle use to ensure low consumption


Machine Specification:

Item Parameter
Max stencial size 750*750*40(mm)
Liquid tank Max:40L, Min:20L
Clean time 2-4min
Dry time 3-5min
Air supply 0.5-0.7Mpa
Air consumption 200-600L/min
Clean type 360°rotate jet clean+compressed air blow dry
Filter system 20/5/1um(3 levels)
Machine weight 185kgs
Machine size 800*950*1650mm
