|Warranty:||12 Month Free Of Charge||Temperature Range:||0-600℃|
|External Dimension:||520*370*600mm||Temperature Deviation:||± 2 ℃|
|Frame Material:||1.5mm Iron||Name:||Circuit Board Router Equipment|

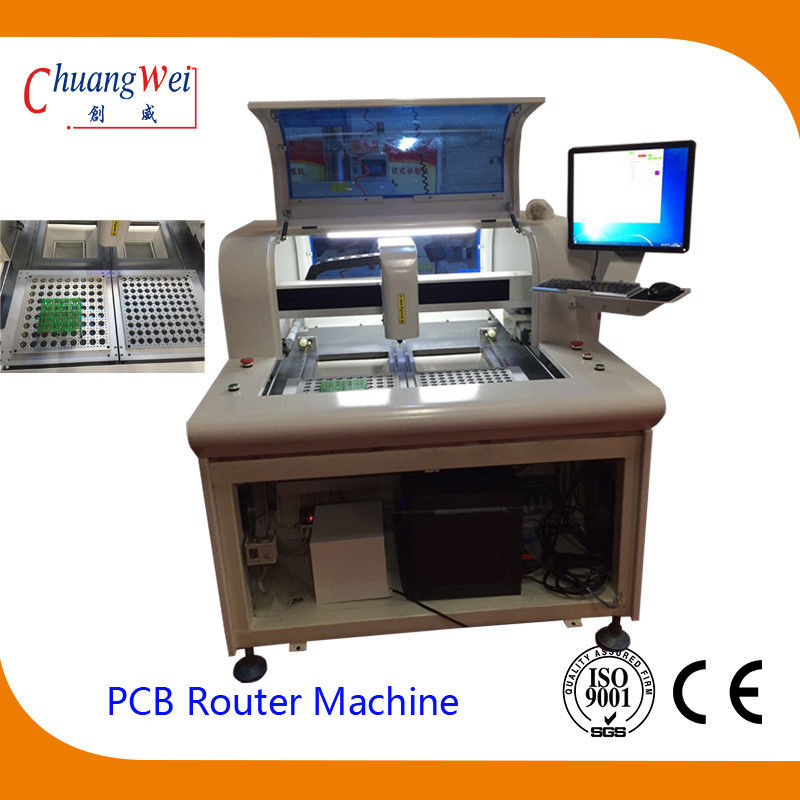

Quick and Efficient PCB Singulation Circuit Board Router Equipment
When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At ChuangWei we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.
Flexible panel designs are easy to deal with through the various cutting patterns available on the routers. A fixture-based dust vacuum removal system utilized from the bottom side assures that there will be no shift or warp during PCB singulation.
Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.
The effectiveness of our routers can not be disputed. Quick, efficient, easy to use, and very low maintenance, it's not hard to see that our routers are a valuable asset for the low cost it comes at.
|Standard working area||320*320mm|
|Board Positioning||Dual workstation with nest fixture or pin fixture|
|Panel Location||Located by tooling holes or edges of PCB|
|Spindle motor||0.5kW Morning Star Spindle|
|Dust filtration system||3KW Vacuum Cleaner|
|Vision system||High resolution CCD video camera|
|Programming||Vision assisted point to point manual teaching|
|Editing Function||Dry run vision assisted / test run mode|
