Product Details:
Payment & Shipping Terms:
|
| Description: | PCB Router | Voltage: | AC 220V± 10% 50Hz |
|---|---|---|---|
| PCB Thickness: | 0.6-3.5mm | Cutting Precision: | 0.01mm |
| Warranty: | 1 Year | Max PCB Size: | 650*500mm |
| High Light: | automatic router machine,pcb depaneling router |
||

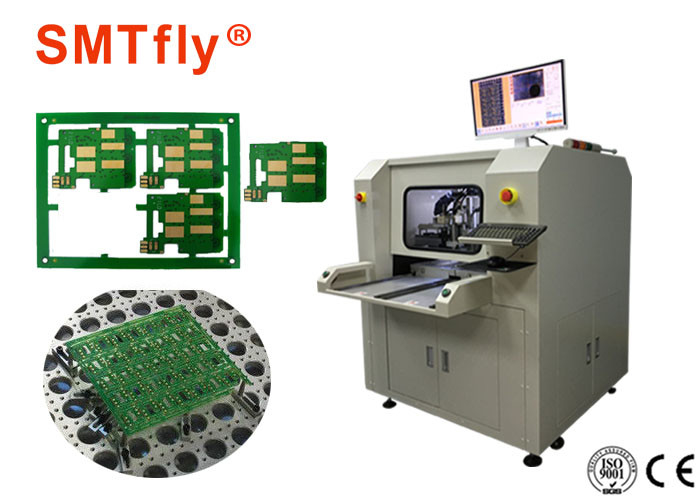

PCB Depaneling Router Machine with 0.01mm Cutting Precision and CE Cerification
It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.
Specification:
| Model | CW-F01 |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |

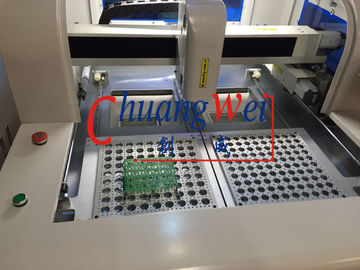

| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Feature:
Large range of panel size up to 650 mm x 500 mm
Powerful servo motors powered axis
CE Certification (Option) Dual Vacuum Blow
Why choose us
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
◇ 1 day delivery
◇ 24 hours fast response
◇ Largest manufactory in South China
◇ 100% responsible for quality
◇ 18 years experience
◇ Free sharpening for blades within 3 months
◇ Controlled drawings make strict confidentiality for clients
