PCB depaneling Shear For long LED Panel Aluminium MCPCB Customized

PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized
PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized

Large Image :  PCB depaneling Shear For long LED Panel Aluminium MCPCB Customized

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: Ce certificate
Model Number: CWVC-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: Western Union, D/A, T/T, L/C
Supply Ability: 1000 sets / year
Detailed Product Description
Material For The Blades: High Speed Steel Number Of Blades: 3-9 Sets (customized )
Cutting Length: Unlimited Warranty: Free For One Year
Shipping Way: Option Name: Pcb Cutting Machine
High Light:

V-CUT scoring machine

,

PCB Cutting Machine





PCB Depanelizer Separating Mahcine For long LED Panel Aluminium MCPCB







PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized 0

PCB depaneling  Shear For long LED Panel Aluminium MCPCB Customized 1



Specification:

Separation speed 100-220 mm/s
Cutting capacity no limit
Panel width 310mm
Number of blades max 10 pairs
PCB width 10-300mm
Component height max 30mm
Min PCB width 7.8mm(could be customized)
Working mode manual or auto







Features for pcb separator :

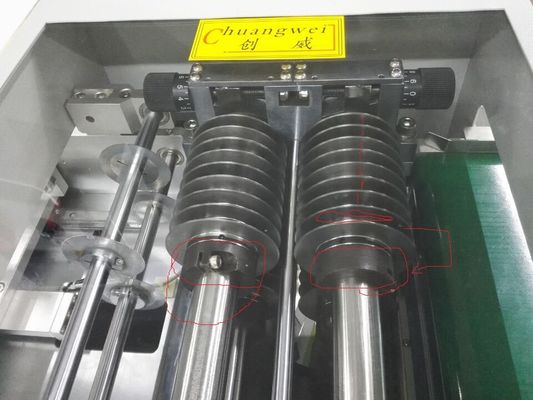

1), 10 pairs of blades is available

2), Of the blades is adjusted toindividual PCB

3), Sensors are used to monitor the separating process

4), The PCBs are placed either by hand or they feed automatically by a loading station.

5), Easy operating

6), Could be adjusted according to PCB sizes and customers' requirements

7), Could be customized made as customers' request
