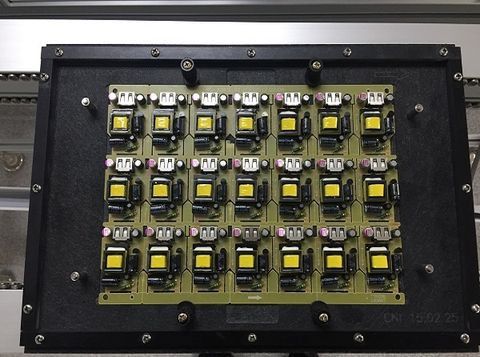

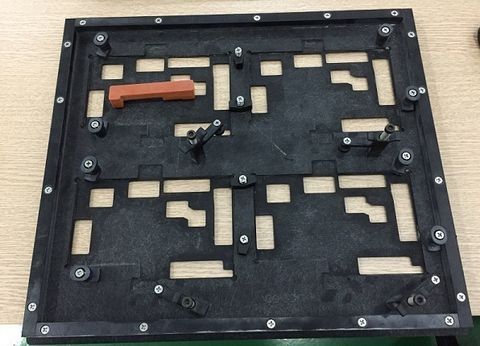

Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture

Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture
Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture

Large Image :  Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture

Product Details:

Place of Origin: Dongguan China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWSC-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Life Cycle: 20000 Times Colour: Blue/ Black/ Grey
Condition:: New Standard OperationTemperature: 260
Maximum Operation Temperature(C): 350 Sheet Size(mm): 2440×1220
High Light:

smt pallet

,

pcb carrier

Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture



Brief introduction



CW Engineering specializes in Wave Solder Pallet For PCB Assembly. Designed by engineers with extensive wave solder experience, our pallets enable customers to automate the soldering of through-hole components on complex electronic assemblies.


The pallets only expose areas of the assembly that require soldering. All other areas are protected, eliminating component damage and expensive, low quality process steps. Made of ESD-safe composite materials, these pallets are designed and manufactured to optimize both the solder ability of your circuit boards and your entire process flow.



BENEFITS


Easy to Use
1) Designed by engineers with extensive wave solder experience
2) Optimized for easy profiling
3) Supports rapid set-up using our ergonomically designed fasteners
4) Optimized for best soldering
5) Wave solder automation to solder through-hole components on complex electronic assemblies.



Specification


Name: Wave solder pallets
Type: CW-Pallet-03
Pallet Material: Durostone anti-static sheet
Sample Availability    :    Yes
Delivery Terms    :    Exw ,CIF,CFR
Delivery Lead Times    :    3~10 working days
Payment Terms    :    T/T
Min Quantity    :    10



Surface-mount technology (SMT) is the leading factor driving higher circuit densities per square inch on PCBs. Directly attaching components and devices to the surface of circuit boards has enabled products to perform with much higher circuit speeds, allowed greater circuit density, and requires fewer external connections. These advances have greatly lowered costs, improved performance and product reliability. However, these benefits do not come without their challenges. Printing solder paste on diminishing pad sizes, placing smaller components, and reflowing entire assemblies with their varieties of termination finishes and materials are just a few of the technical challenges that process engineers face every day.





Specification:



Model DurostoneCHP760 DurostoneCAS761 DurostoneCAG762
Grade Standard Anti-Static Anti-static(Optical)
Colour Blue Black Grey
Density(g/mm3) 1.85 1.85 1.85
Standard OperationTemperature 260 260 260
Maximum Operation Temperature(C) 350 350 350
Sheet Size(mm) 2440×1220 2440×1220 2440×1220
Tickness/weight(mm/kg) 3/17, 4/22 5/28, 6/33, 8/44 10/55, 12/66



 Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture 0




Used by most of our customers because of some advantages:



1. Faster positioning on production line

2. Low costs due to the missing of reinforced bars

3. Better volume stocking

4. Better yield with different board type on the production line



Our sales network

Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture 1







This estimation may be done in three ways

If a PCB is available (preferably populated) - our sales engineers can rapidly evaluate your board.
If PCB design data is available we will process, analyse and remotely assess it.
You can do it using the rules presented below - our customers quickly find that the above two methods are easiest.


Gerber, Excellon and other data required

Pin Land to SMT pad clearance evaluation

The two figures below each show part of a CSWSC in plan and section views. The right hand figure shows that more clearance
is required when the connector orientation is perpendicular to the wave.



Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture 2

PTH Components Located Parallel to direction through wave

The clearance required between the pin land and SMT pad can be made quite
small, as the solder does not have to flow "under" the component pockets.









Reflow Surface Mount Technology Solder Pallet Fixture PCB Assembly,PCB Fixture 3





PCB Design Implications - for Board Designers - or respin



We are often called upon by our customers to help with identifying design respin opportunities.

We will identify problem areas within a board and suggest appropriate movements of components. (Ideally before the PCB is fabricated)

However for board designers reading this, can you remember another four "rules" (to compete with the hundred other rules you have to have floating
around in your head).

Keep large (height) SMT components away from PTH areas.
Leave the leading and trailing areas around PTH components as clear as possible.
DON'T put any SMT components within 3mm (0.12") of any PTH components.
DON'T put all PTH components in line along one edge of a board - leave some space to allow us to support the masking in the centre of the board.
